Product Code: MPPIFRA001

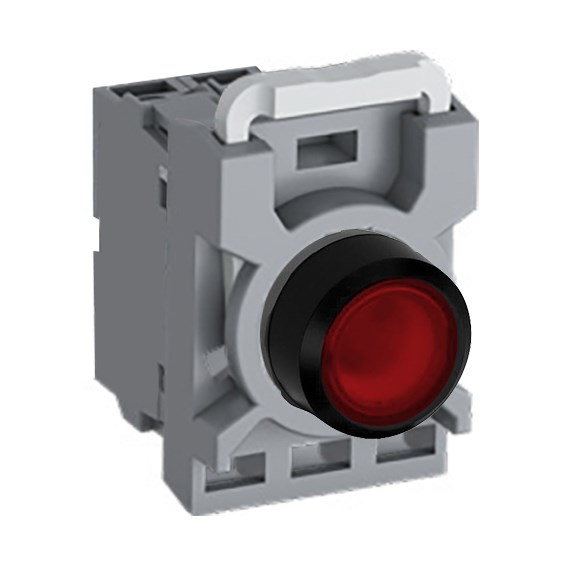

22mm flush actuator with red LED illumination
IP66 front protection for robust durability
Operates at 12 VAC/DC with maintained function
Rated thermal current of 10A for reliable use
Suitable for temperatures from -25 to 70°C

Specifications

Contacts	1NC
Rated Voltage DC (V)	12
LED Block Rated Voltage	12 VDC
Bezel Material	Plastic
Product Type	Pushbutton Kit
Brand	ABB
Actuator Type	Flush
Ambient Temperature	-25 to 70 deg C
Bezel Material	Plastic
Colour	Red
Contact Configuration	1NC
Cutout Size	22 mm
Degree of Protection	IP66 Front, IP20 Terminal
Diameter	22 mm
Function	Maintained
Illumination	Illuminated
Includes	Operator, Contact Block, Contact Block Holder and LED Block
Lamp Colour	Red
Lamp Type	LED
LED Colour	Red
Mode of Operation	Maintained
Rated Impulse Withstand Voltage	6 kV
Rated Insulation Voltage	690 V
Rated Thermal Current	10 A
Rated Voltage	12 VAC/DC
Standards and Approvals	EN IEC 60947-1, EN IEC 60947-5-1, EN IEC 60947-5-5, EN IEC 60073, EN IEC 60529, EN 50013, DIN 40050-9, UL 508, CSA C22.2 No. 14

Description

This red flush illuminated pushbutton kit features an integrated red LED and operates on 12VDC. It has a 1NC contact configuration. The kit is part of a modular plastic range and has an IP66 rating for the front and an IP20 rating for the terminals.
