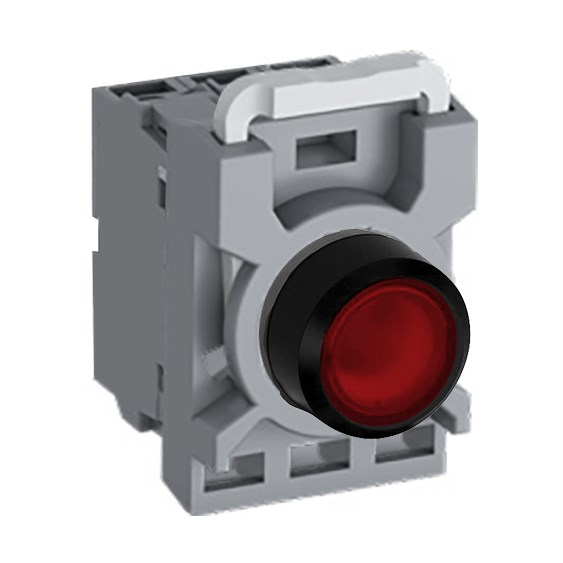

For professionals in the electrical engineering and automation sectors, selecting components that meet rigorous standards is crucial. This illuminated pushbutton switch is designed with a focus on reliability and functionality, making it an ideal choice for industrial and commercial applications.
The device operates at a rated voltage of 24 VAC/DC, offering flexibility for various power systems. Its robust design ensures durability with an IP66 degree of protection at the front, safeguarding against dust and powerful water jets—perfect for challenging environments. The terminal side features an IP20 rating, providing basic protection against finger contact.
Meeting several international standards such as EN IEC 60947-1, EN IEC 60947-5-1, EN IEC 60947-5-5, EN IEC 60073, EN IEC 60529 along with UL 508 and CSA C22.2 No.14 approvals highlights its compliance with both European and North American safety requirements. This makes it suitable for global deployment without concerns about regulatory compatibility.
The ambient temperature range of -25 to 70 degrees Celsius ensures reliable performance across diverse climatic conditions—from cold storage facilities to high-temperature manufacturing sites. With a rated insulation voltage of up to 690 V and a rated impulse withstand voltage of 6 kV, this switch provides excellent electrical endurance.
Featuring a flush actuator type with a diameter of 22 mm allows it to maintain a low profile while being ergonomically accessible for operators. The red LED illumination enhances visibility in dimly lit environments or control panels that require clear status indication.
With a maintained function configuration and contact arrangement of two normally closed (2NC) contacts, this switch supports secure operational requirements where maintaining circuit integrity is critical until manually reset by the operator.
The bezel material made from durable plastic ensures longevity while keeping costs manageable—a practical choice without compromising on quality or aesthetics. The cutout size matches the industry standard at 22 mm facilitating seamless integration into existing setups.
Included in the package are essential components: the operator unit itself along with the contact block holder and LED block simplifying installation processes by reducing additional procurement needs.
This comprehensive feature set positions this illuminated pushbutton switch as an efficient solution catering to technical demands within industrial settings ensuring consistency in operation under varying environmental conditions.
