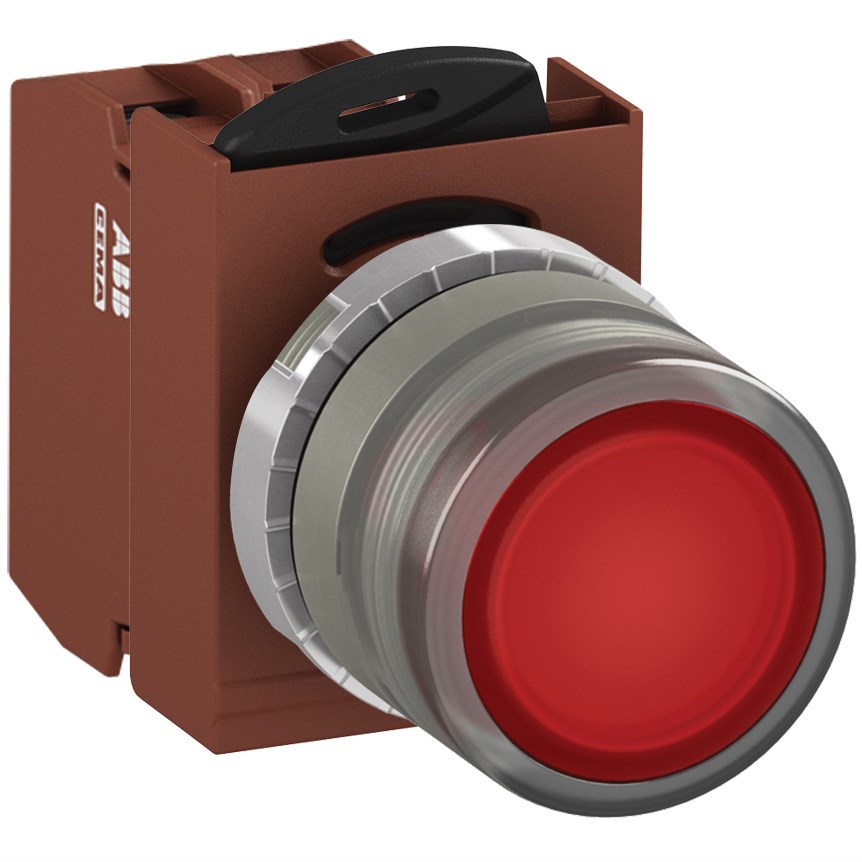

This robust industrial control device is designed to meet the demanding needs of mining, construction, and heavy industry applications. With a rated voltage of 24 VAC/DC, it ensures reliable operation in various electrical environments. The unit features an illuminated actuator, enhancing visibility and usability in low-light conditions—a critical factor in industrial settings.
Built to withstand harsh conditions, it boasts a degree of protection rated at IP66. This means it's dust-tight and protected against powerful water jets, making it suitable for outdoor or dusty environments where durability is paramount. Compliance with standards such as EN IEC 60947-5-1, EN IEC 60947-5-5, EN IEC 60073, EN IEC 60529, UL 508, and CSA C22.2 No. 14 underscores its reliability and adherence to international safety norms.
The ambient temperature range from -30 to 70 degrees Celsius ensures that this product performs consistently across a wide range of climatic conditions—whether you're dealing with the chill of winter or the heat of summer.
Featuring a screw connection type for secure installation and maintenance ease, this device supports a rated insulation voltage up to 690 V and can handle impulse voltages up to 4 kV—parameters that underline its robustness in high-demand scenarios.
The contact configuration is set as normally open (1NO), which simplifies circuit design for those requiring straightforward on-off operations. It has a flush actuator type with a diameter of 22 mm that fits standard cutout sizes seamlessly—ideal for panel installations where space conservation is key.
The lamp color is red—a universally recognized signal color for stop or emergency situations—and uses LED technology known for long life and energy efficiency. The maintained function allows the switch position to be held until manually reset; this feature enhances operational control in critical applications.
With a rated thermal current capacity of up to 10 A, this product can accommodate various load requirements without compromising performance. Its metal bezel material not only provides an aesthetic finish but also adds an extra layer of protection against mechanical impacts.
Included components such as the operator assembly, contact block with maintained accessories, LED block and LED ensure you have everything needed for immediate deployment upon purchase—streamlining your setup process significantly.
Overall, whether you're upgrading existing systems or installing new ones in challenging industrial environments like mines or construction sites—this product delivers reliable performance backed by stringent safety standards.
