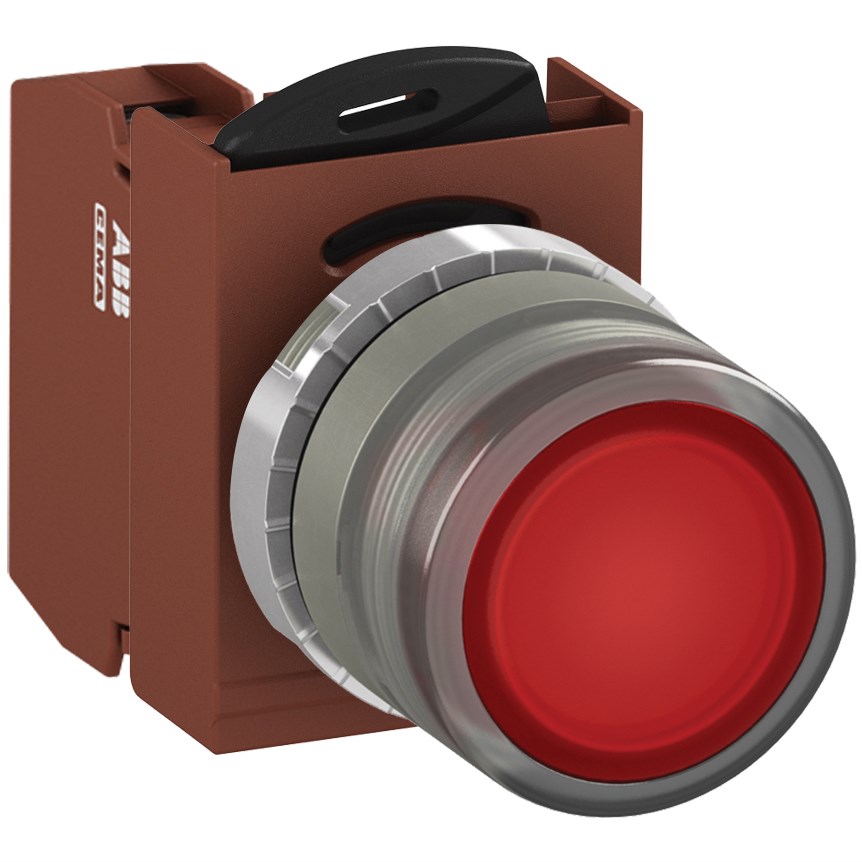

When selecting components for industrial and commercial applications, precision and reliability are paramount. This illuminated pushbutton switch is engineered to meet the rigorous demands of mining, construction, and heavy industry environments. With a rated voltage of 24 VAC/DC, it offers versatility in various electrical systems while ensuring consistent performance.
The robust design includes an IP66 degree of protection, making it highly resistant to dust and water ingress—ideal for harsh settings where durability is crucial. Compliance with standards such as EN IEC 60947-5-1, EN IEC 60947-5-5, EN IEC 60073, EN IEC 60529, UL 508, and CSA C22.2 No. 14 further underscores its reliability and safety in operation.
Operating efficiently within a wide ambient temperature range from -30 to 70 degrees Celsius, this device maintains functionality under extreme conditions. The screw connection type ensures secure installation and connectivity.
With a rated insulation voltage of up to 690 V and a rated impulse withstand voltage of 4 kV, this switch is designed to handle significant electrical loads safely. The contact configuration features one normally open (1NO) contact that supports straightforward integration into control circuits.
The actuator type is flush with a diameter size of 22 mm which fits standard panel cutouts seamlessly. The red lamp color provides clear visual indication when activated—a critical feature in high-stakes environments where quick status recognition can enhance safety and efficiency.
Utilizing the BA9S lamp type ensures easy replacement when necessary without compromising on illumination quality or consistency. Its maintained function means the switch remains in its last position until manually changed—a valuable feature for certain operational requirements.
Constructed with a metal bezel material for enhanced durability against physical impacts or wear over time. The light blocks are powered by an integrated power supply (lamp block), simplifying system design by eliminating the need for additional components.
Included accessories like the operator contact block maintained accessories power supply (lamp block) and lamp ensure you have everything needed for immediate deployment right out of the box—streamlining setup processes significantly.
For professionals working within demanding sectors such as mining construction or heavy industry this illuminated pushbutton represents not just another component but rather an investment into reliable efficient operations backed by robust engineering principles tailored specifically toward challenging environments.
