Product Code: MPPIFWA210

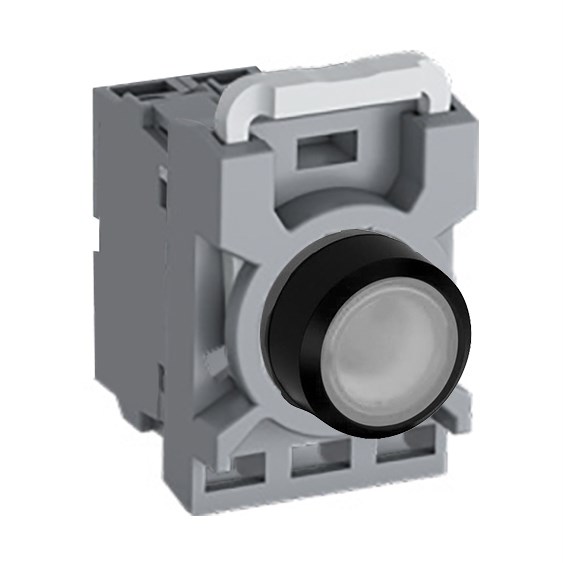

Illuminated pushbutton with white LED lamp
IP66 front protection for harsh environments
Operates in -25 to 70°C temperature range
Flush actuator with 22 mm diameter
Includes operator, contact block, and LED block

Specifications

Contacts	1NO
Rated Voltage AC (V)	110 - 130
LED Block Rated Voltage	110-130 VAC
Bezel Material	Plastic
Product Type	Pushbutton Kit
Brand	ABB
Actuator Type	Flush
Ambient Temperature	-25 to 70 deg C
Bezel Material	Plastic
Colour	White
Contact Configuration	1NO
Cutout Size	22 mm
Degree of Protection	IP66 Front, IP20 Terminal
Diameter	22 mm
Function	Maintained
Illumination	Illuminated
Includes	Operator, Contact Block, Contact Block Holder and LED Block
Lamp Colour	White
Lamp Type	LED
LED Colour	White
Mode of Operation	Maintained
Rated Impulse Withstand Voltage	6 kV
Rated Insulation Voltage	690 V
Rated Thermal Current	10 A
Rated Voltage	110-130 VAC/DC
Standards and Approvals	EN IEC 60947-1, EN IEC 60947-5-1, EN IEC 60947-5-5, EN IEC 60073, EN IEC 60529, EN 50013, DIN 40050-9, UL 508, CSA C22.2 No. 14

Description

This white flush illuminated pushbutton kit features an integrated white LED. It operates on 110-130V AC power and has a 1NO contact configuration. The kit is part of a modular plastic range and has an IP66 front rating for protection against dust and water, while the terminals have an IP20 rating.

Documents

IPD Product Catalogue

IPD Product Catalogue V17

ABB MPPIFWA210 Illuminated Pushbutton Kit 22mm Flush Maintained White 110-130VAC/DC 1NO
