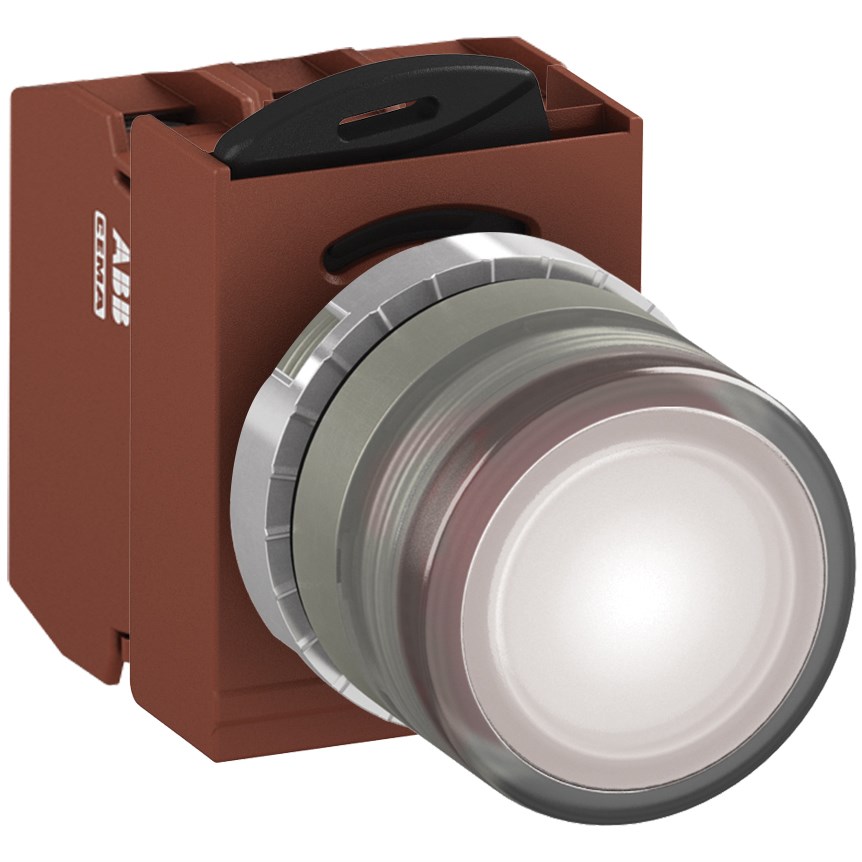

When it comes to industrial and commercial applications, reliability and durability are key. For those working in mining, construction, or heavy industry, this illuminated control component offers robust performance with its IP66-rated protection against dust and powerful water jets. This ensures that the device withstands harsh environments while maintaining optimal functionality.
Operating at a rated voltage of 12 VAC/DC, this component features a screw connection type for secure installation. The actuator is flush with a diameter of 22 mm, making it both compact and practical for various panel designs. Its maintained function means it will stay in its last set position until manually changed—ideal for applications requiring consistent operation without constant supervision.
The illumination is provided by a white BA9S lamp type, ensuring visibility even in low-light conditions. The light blocks are powered by an included power supply (lamp block), enhancing convenience and reducing the need for additional components.
Safety standards are rigorously met with certifications including EN IEC 60947-5-1, EN IEC 60947-5-5, EN IEC 60073, EN IEC 60529 as well as UL 508 and CSA C22.2 No. 14 approvals. These credentials assure compliance with global safety norms—an essential factor when selecting components for critical industrial applications.
Designed to perform in extreme temperatures ranging from -30 to 70 degrees Celsius, the product's resilience is further demonstrated by its rated insulation voltage of up to 690 V and an impressive rated impulse withstand voltage of 4 kV.
With a contact configuration of two normally closed (2NC) contacts and a rated thermal current capacity of up to 10 A, this product integrates seamlessly into existing systems while providing reliable circuit interruption capabilities.
Constructed with a metal bezel material for added durability against mechanical stressors common in demanding work environments such as mining or construction sites; this component also includes an operator contact block maintained accessories along with the necessary power supply lamp block ensuring full operational readiness upon installation.
In summary this product provides not only compliance but also exceptional performance under challenging conditions making it suitable for professionals seeking reliable solutions tailored specifically towards heavy-duty industries where precision robustness efficiency take precedence over aesthetics alone.
