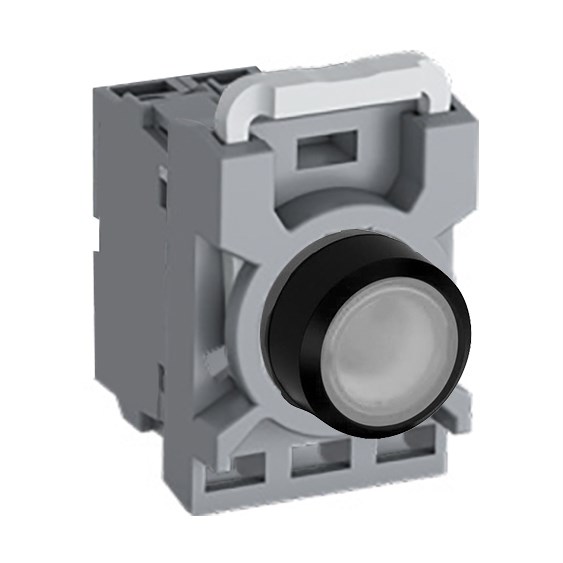

In the world of industrial automation and control, selecting the right components is crucial for ensuring safety, reliability, and efficiency. One such component that stands out is this illuminated pushbutton designed to meet a variety of demanding applications. Let's delve into its specifications and see how it might fit your technical needs.
This pushbutton operates at a rated voltage of 220 VDC, making it suitable for various DC applications where reliable performance is essential. The illumination feature, provided by an LED lamp with a white color, ensures visibility in diverse environments. This makes it ideal for settings where clear signaling is necessary.
The pushbutton boasts impressive durability with an IP66 degree of protection on the front side, meaning it's dust-tight and protected against powerful water jets—a valuable asset in harsh industrial environments. The terminal side holds an IP20 rating for basic protection against finger contact.
Meeting several international standards such as EN IEC 60947-1 and UL 508 among others, this product assures compliance with global safety and performance criteria, offering peace of mind to integrators worldwide.
Designed to withstand ambient temperatures from -25°C to 70°C, this pushbutton can perform reliably across a broad range of climatic conditions—whether in cold storage facilities or high-temperature manufacturing plants.
With a rated insulation voltage of 690 V and a rated impulse withstand voltage of 6 kV, it offers robust electrical insulation properties vital for safe operation under varying electrical loads.
The actuator type is flush with a diameter cutout size of 22 mm which aligns with standard panel designs simplifying installation processes. Its maintained function means once pressed; it stays activated until manually reset—a key feature when continuous operation or status indication is required.
Engineered with practicality in mind, the contact configuration features one normally open (1NO) contact capable of handling up to 10 A rated thermal current—sufficient for many control circuits without additional relays or interfaces.
Constructed using durable plastic material for the bezel provides not only aesthetic appeal but also resistance against corrosion—a significant consideration in chemical industries or outdoor applications.
Included within this package are essential components: operator unit itself along with contact block holder plus LED block ensuring easy assembly reducing downtime during maintenance cycles significantly enhancing productivity levels across operations without compromising on quality standards set forth by industry leaders globally today!
