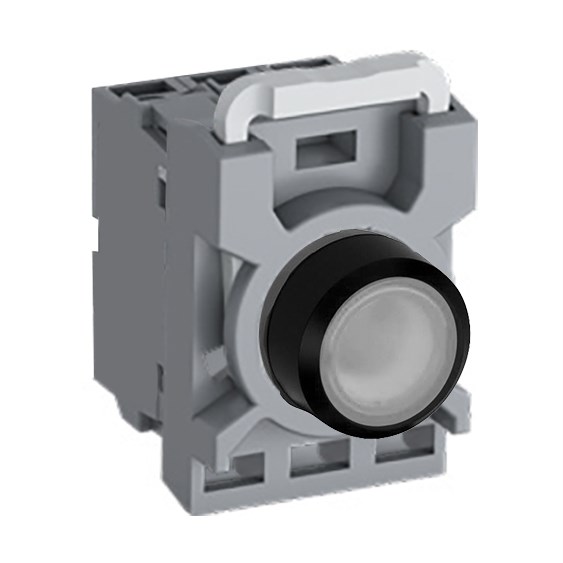

When it comes to selecting the right components for your industrial or commercial setup, understanding the technical specifications is crucial. This illuminated actuator offers a robust design with features that cater to demanding environments.
Operating at a rated voltage of 230 VAC/DC, this device ensures reliable performance across various applications. Its illumination feature enhances visibility and usability, making it suitable for settings where clear indication is necessary. The actuator's flush type design with a diameter of 22 mm provides an unobtrusive yet effective control interface.
One of its standout attributes is the degree of protection it offers—IP66 at the front and IP20 at the terminal—ensuring durability against dust and water ingress in different operational conditions. This makes it an ideal choice for environments where exposure to such elements is common.
The product adheres to several standards and approvals including EN IEC 60947-1, EN IEC 60947-5-1, EN IEC 60947-5-5, EN IEC 60073, EN IEC 60529, EN 50013, DIN 40050-9 as well as UL 508 and CSA C22.2 No.14 certifications. These certifications underscore its compliance with international safety and performance benchmarks.
Designed to withstand ambient temperatures ranging from -25 to +70 degrees Celsius, this actuator maintains functionality in both cold storage facilities and warmer climates alike. It boasts a rated insulation voltage of up to 690 V along with a rated impulse withstand voltage of 6 kV which speaks volumes about its resilience under transient overvoltages.
The contact configuration includes one normally open (NO) and one normally closed (NC) contact allowing flexibility in circuit designs while maintaining reliability through its maintained function—a vital feature when continuous operation is required without constant manual input.
Its white LED lamp not only provides clear status indication but also ensures energy efficiency over traditional lighting options. With a rated thermal current capacity of up to 10 A it's built to handle substantial electrical loads ensuring longevity even under heavy usage scenarios.
Constructed with a plastic bezel material this device balances lightweight construction with durability making installation straightforward without compromising on ruggedness or aesthetic appeal. The cutout size matches the diameter at precisely 22 mm simplifying integration into existing panels or new installations seamlessly.
Included in this package are all essential components: an operator contact block contact block holder as well as an LED block ensuring you have everything needed for immediate deployment upon purchase saving time on sourcing additional parts separately.
