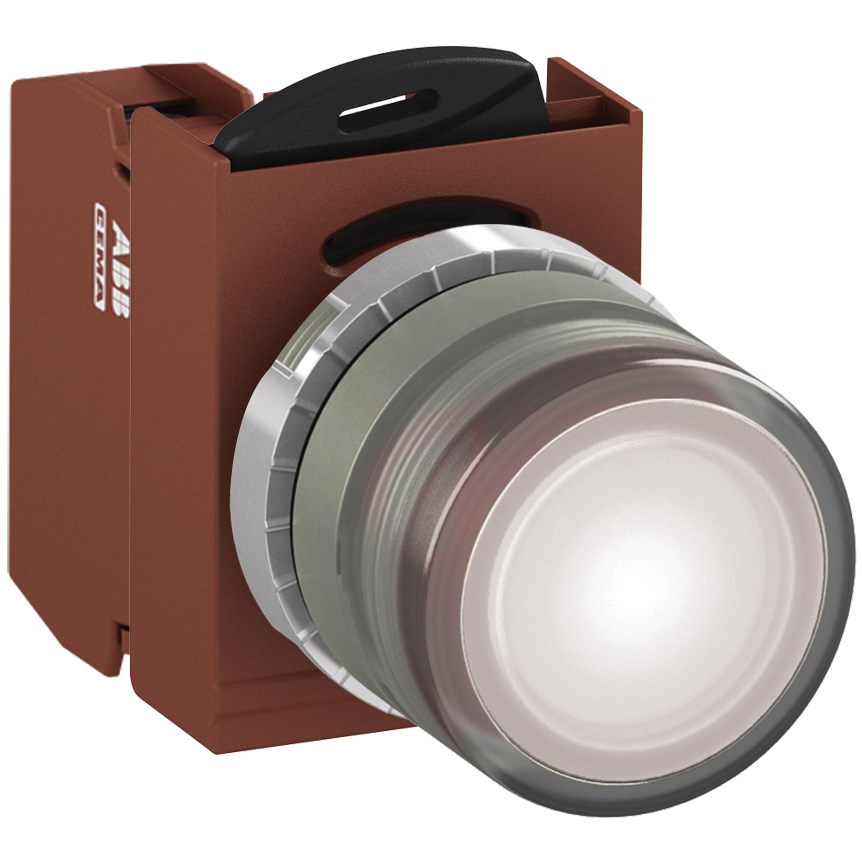

When selecting components for industrial applications, reliability and compliance with industry standards are paramount. This illuminated actuator is designed to meet the rigorous demands of sectors such as mining, construction, and heavy industry. With a rated voltage of 230 VAC/DC, this device ensures consistent performance in various environments.
One of the standout features is its robust degree of protection at IP66. This rating guarantees that the actuator is dust-tight and protected against powerful water jets—ideal for harsh conditions often found in industrial settings. The product adheres to several critical standards including EN IEC 60947-5-1, EN IEC 60947-5-5, EN IEC 60073, EN IEC 60529, UL 508, and CSA C22.2 No. 14 ensuring it meets high safety and quality benchmarks.
The actuator operates efficiently across a wide ambient temperature range from -30 to 70 degrees Celsius allowing it to withstand extreme environmental conditions without compromising functionality. The connection type utilizes screw terminals which provide secure electrical connections essential for maintaining system integrity.
Its rated insulation voltage stands at an impressive 690 V with a contact configuration of 1NC (normally closed), making it suitable for various control circuit applications. Additionally, the rated impulse withstand voltage is set at 4 kV offering enhanced protection against transient voltages.
Designed with a flush actuator type and a diameter of 22 mm this product integrates seamlessly into existing panels or new installations while maintaining an unobtrusive profile. The white lamp color housed within uses a BA9S lamp type known for its durability and brightness—a crucial feature when visibility matters most.
Functionality-wise this actuator employs a maintained function meaning it stays in position until manually reset providing dependable operation during use. It supports a rated thermal current of up to 10 A catering to demanding electrical loads typical in industrial environments.
Constructed with metal bezel material the device ensures longevity even under mechanical stress or exposure to corrosive elements commonly encountered onsite. The cutout size matches its diameter at 22 mm facilitating straightforward installation processes without additional modifications required on standard setups.
Included components such as the operator contact block maintained accessories power supply (lamp block) and lamp make this product comprehensive ready-to-install right out-of-the-box minimizing downtime during deployment phases.
This illuminated actuator presents itself as an ideal choice for professionals seeking reliable compliant solutions tailored specifically towards challenging applications prevalent within mining construction heavy industries among others ensuring peace-of-mind through every operational cycle.
