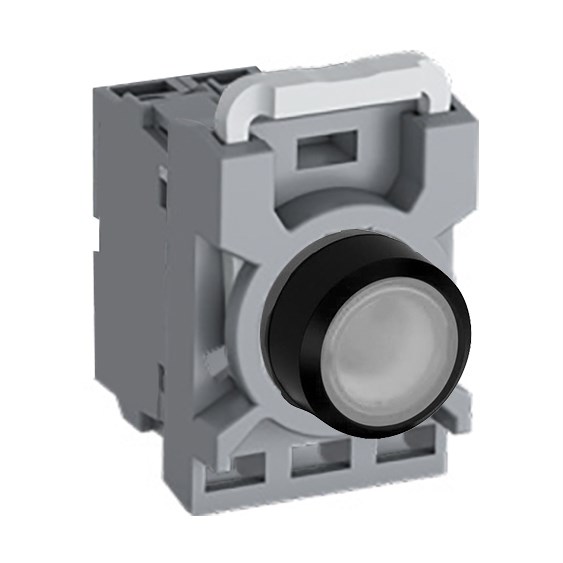

ABB MPPIFWA110 Illuminated Pushbutton Kit 22mm Flush Maintained White 24VAC/DC 1NO

Product Code: MPPIFWA110

  • 24 VAC/DC illuminated pushbutton
  • IP66 front protection, durable design
  • Flush actuator with 22 mm diameter
  • Operates in -25 to 70°C environments
  • Includes operator, contact block & LED
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Contacts 1NO
Rated Frequency (Hz) 50/60
Rated Voltage AC/DC (V) 24
LED Block Rated Voltage 24 VAC/DC
Bezel Material Plastic
Product Type Pushbutton Kit
Brand ABB
Actuator Type Flush
Ambient Temperature -25 to 70 deg C
Bezel Material Plastic
Colour White
Contact Configuration 1NO
Cutout Size 22 mm
Degree of Protection IP66 Front, IP20 Terminal
Diameter 22 mm
Function Maintained
Illumination Illuminated
Includes Operator, Contact Block, Contact Block Holder and LED Block
Lamp Colour White
Lamp Type LED
LED Colour White
Mode of Operation Maintained
Rated Impulse Withstand Voltage 6 kV
Rated Insulation Voltage 690 V
Rated Thermal Current 10 A
Rated Voltage 24 VAC/DC
Standards and Approvals EN IEC 60947-1, EN IEC 60947-5-1, EN IEC 60947-5-5, EN IEC 60073, EN IEC 60529, EN 50013, DIN 40050-9, UL 508, CSA C22.2 No. 14

Description

This Illuminated Pushbutton White Maintained Flush kit includes a modular plastic range with an operator, contact blocks, contact block holder, and LED block. It features 1 normally open (NO) contact and operates on 24VAC/DC power.
