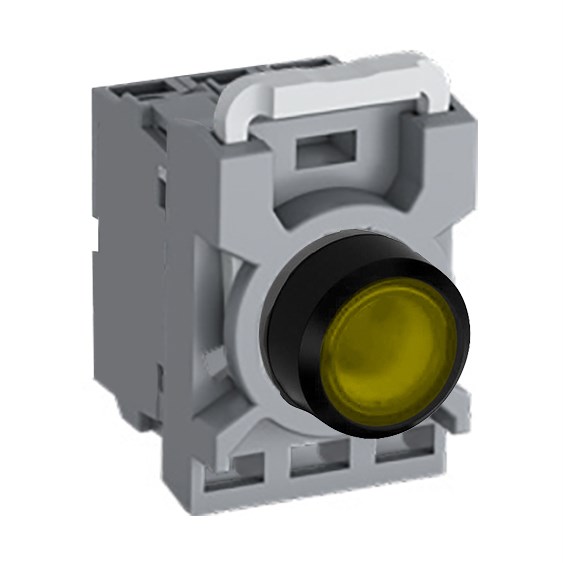

When it comes to selecting reliable components for industrial and commercial applications, understanding the technical specifics is crucial. This illuminated push-button switch offers a robust solution with its key features designed to meet high standards in various environments.
Operating at a rated voltage of 110-130 VAC/DC, this device ensures versatility across different power systems. Its illumination is powered by a yellow LED, which not only provides clear visibility but also enhances energy efficiency. The flush actuator type offers a sleek design while ensuring ease of operation.
Durability and protection are paramount in industrial settings, and this product does not disappoint. It boasts an IP66 rating at the front, providing excellent resistance against dust and powerful water jets, making it ideal for harsh environments. The terminal side holds an IP20 rating, suitable for standard protection needs within enclosed panels.
The push-button adheres to multiple international standards including EN IEC 60947 series and UL 508 among others, ensuring compliance with global safety regulations. This makes it a dependable choice for engineers looking for internationally recognized solutions.
With ambient temperature tolerance ranging from -25 to 70 degrees Celsius, this switch is engineered to perform reliably in both cold and warm conditions without compromising functionality. The rated insulation voltage stands at 690 V and the contact configuration of 2NC (normally closed) ensures secure disconnection when needed.
The product includes essential components such as an operator, contact block, contact block holder, and LED block—streamlining installation processes by providing all necessary elements out-of-the-box.
For those concerned about electrical endurance under surges or spikes, the rated impulse withstand voltage is set at an impressive 6 kV. Furthermore, the maintained function allows for continuous operation until manually reset—a valuable feature in many control systems.
Constructed with plastic bezel material and designed with a diameter cutout size of 22 mm—matching its overall diameter—the switch fits seamlessly into standard panel designs without requiring additional modifications.
Rated thermal current capacity reaches up to 10 A offering adequate support for moderate load requirements typical in most industrial applications. This comprehensive set of specifications ensures that you’re investing in a component that aligns well with your operational demands while maintaining safety integrity across diverse conditions.
