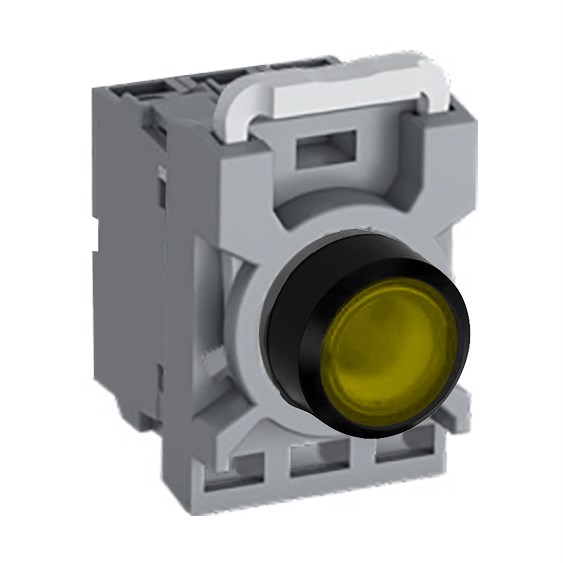

When selecting components for industrial and commercial applications, reliability, compliance with standards, and ease of integration are paramount. This illuminated pushbutton switch is designed to meet these needs effectively. Operating at a rated voltage of 230 VAC/DC, it provides versatility for various power systems.
The device features an IP66 front protection rating, ensuring its resilience against dust and powerful water jets—a critical consideration for harsh environments. The terminal's IP20 rating indicates basic protection against finger contact, suitable for controlled settings. Compliance with multiple international standards such as EN IEC 60947-1 and UL 508 underscores its credibility in safety and performance.
This pushbutton operates efficiently within a broad ambient temperature range from -25 to 70°C, making it adaptable to diverse climates. With a rated insulation voltage of 690 V and an impressive impulse withstand voltage of 6 kV, the switch offers robust electrical endurance.
The actuator is flush-mounted with a standard diameter of 22 mm, integrating seamlessly into existing panels or new installations. Its maintained function ensures that once activated, the button remains engaged until manually reset—ideal for applications requiring sustained operation without continuous manual input.
Illumination is provided by a yellow LED lamp known for its energy efficiency and long lifespan. The LED not only aids visibility but also serves as an indicator light when the switch is active—essential in busy work environments where quick status recognition is needed.
Durability extends beyond electrical specs; the bezel material crafted from plastic ensures lightweight yet sturdy construction fit for industrial use. Additionally, the cutout size matches industry norms at 22 mm, facilitating straightforward installation or replacement processes.
Included in this package are essential components: an operator unit alongside contact block holders and LED blocks—all designed to streamline assembly while maintaining high functionality standards.
Engineers will appreciate the contact configuration featuring two normally closed (2NC) contacts which provide reliable circuit control under load conditions up to a rated thermal current of 10 A. This setup supports complex system designs where fail-safe operations are crucial.
Overall this product exemplifies practical engineering solutions tailored towards demanding technical requirements offering both operational efficiency & compliance assurance across varied applications without compromising on quality or performance expectations.
