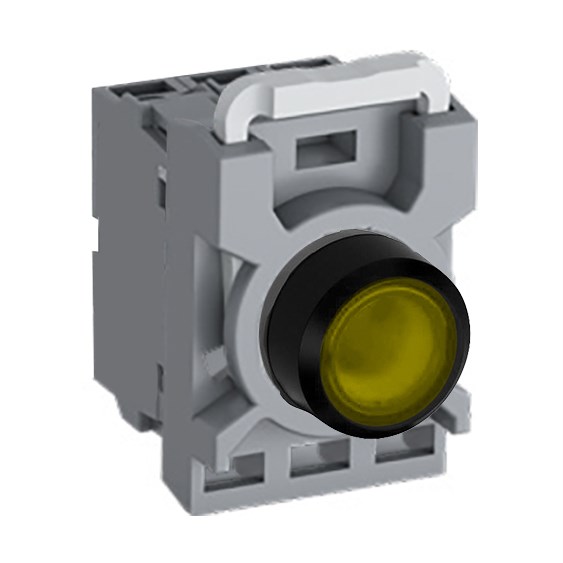

When selecting components for industrial and commercial applications, precision and reliability are paramount. This illuminated push button switch offers a robust solution designed to meet the demands of various environments. Operating at a rated voltage of 230 VAC/DC, it delivers consistent performance across its intended applications.
The switch's illumination is provided by a yellow LED lamp, ensuring high visibility and clear indication in operational settings. The actuator type is flush, which means it sits level with the surrounding surface for seamless integration into control panels or other equipment interfaces. With a diameter of 22 mm, this component fits standard cutouts with ease.
One of the key features is its impressive degree of protection: IP66 on the front side ensures it's safeguarded against dust ingress and powerful water jets, making it suitable for harsh environments. The terminal side has an IP20 rating to protect against finger contact with live parts.
This product adheres to rigorous standards and approvals including EN IEC 60947-1, EN IEC 60947-5-1, EN IEC 60947-5-5 among others, guaranteeing compliance with international safety and quality benchmarks. Additionally, it meets UL 508 and CSA C22.2 No. 14 standards for North American markets.
The ambient temperature range extends from -25 to 70 degrees Celsius, allowing for reliable operation in both cold storage facilities and heated industrial spaces. Its rated insulation voltage stands at an impressive 690 V while offering a rated impulse withstand voltage of up to 6 kV—ideal for systems requiring high resilience against electrical surges.
Featuring a maintained function with a contact configuration of two normally open (2NO) contacts, this switch is suitable for tasks that require sustained activation without constant manual pressure. It supports a rated thermal current up to 10 A—a testament to its capacity to handle significant power loads efficiently.
Constructed with durability in mind, the bezel material is plastic which provides resistance against impacts while maintaining lightweight characteristics essential for easy installation and maintenance.
In terms of assembly components included are an operator unit along with necessary contact block holder components such as contact blocks themselves alongside an LED block providing all necessary parts needed straight out-of-the-box installation process straightforward minimizing downtime associated setup procedures typical complex systems often entail thereby enhancing overall user experience satisfaction levels considerably over time usage period especially critical demanding industrial settings where every second counts towards achieving optimal productivity outcomes desired end-users alike Manufacturer Part Number: [ProductCode]
