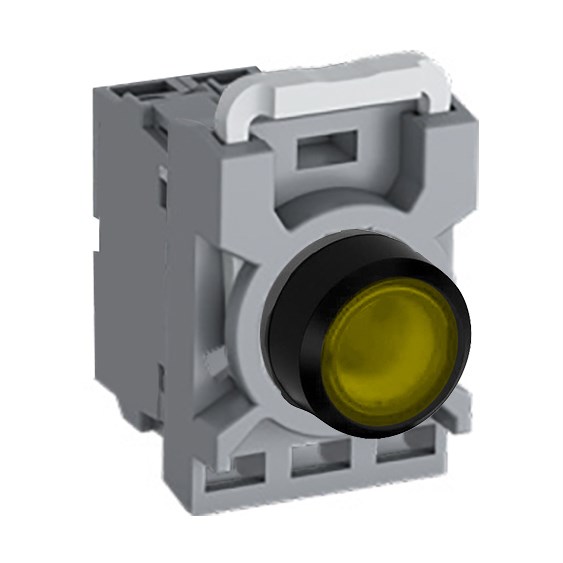

In the realm of industrial and commercial applications, selecting the right components is crucial for ensuring optimal performance and safety. This illuminated actuator offers a practical solution with its robust features tailored to meet diverse technical requirements. Operating at a rated voltage of 24 VAC/DC, this device promises versatility in both AC and DC environments.
The product's illumination feature is powered by a yellow LED lamp, providing clear visibility even in dimly lit conditions. With an IP66 protection rating on the front and IP20 at the terminal, it stands resilient against dust ingress and powerful water jets from any direction, making it suitable for demanding environments.
Adhering to international standards such as EN IEC 60947-1, EN IEC 60947-5-1, EN IEC 60947-5-5 among others ensures compliance with rigorous industry norms. Its certification under UL 508 and CSA C22.2 No.14 further underscores its reliability across different regions.
Designed to function seamlessly within ambient temperatures ranging from -25 to 70 degrees Celsius, this actuator is built for resilience against harsh environmental conditions. The rated insulation voltage of 690 V highlights its capability to handle significant electrical loads safely.
With a contact configuration of 1NC (normally closed), it integrates smoothly into existing systems requiring normally closed contacts for their operation logic. The actuator boasts a rated impulse withstand voltage of 6 kV which enhances its durability against transient overvoltages.
Featuring a flush actuator type with a diameter of 22 mm, it maintains an unobtrusive presence while ensuring ease of use. The maintained function allows operators to set the switch position until manually changed—a feature beneficial in various control applications.
Its rated thermal current capacity stands at an impressive 10 A which supports substantial operational demands without compromising on safety or performance. Constructed with plastic bezel material ensures lightweight design yet durable enough for prolonged use.
The cutout size matches the standard diameter at 22 mm facilitating straightforward installation into compatible panels or enclosures without additional modifications needed.
Included components such as operator contact block contact block holder and LED block provide comprehensive functionality out-of-the-box minimizing setup time significantly while maximizing efficiency during deployment processes.
This product stands as an ideal choice when seeking reliable illuminated actuators that combine essential features with compliance across multiple standards—delivering dependable operation aligned perfectly with your technical needs.
