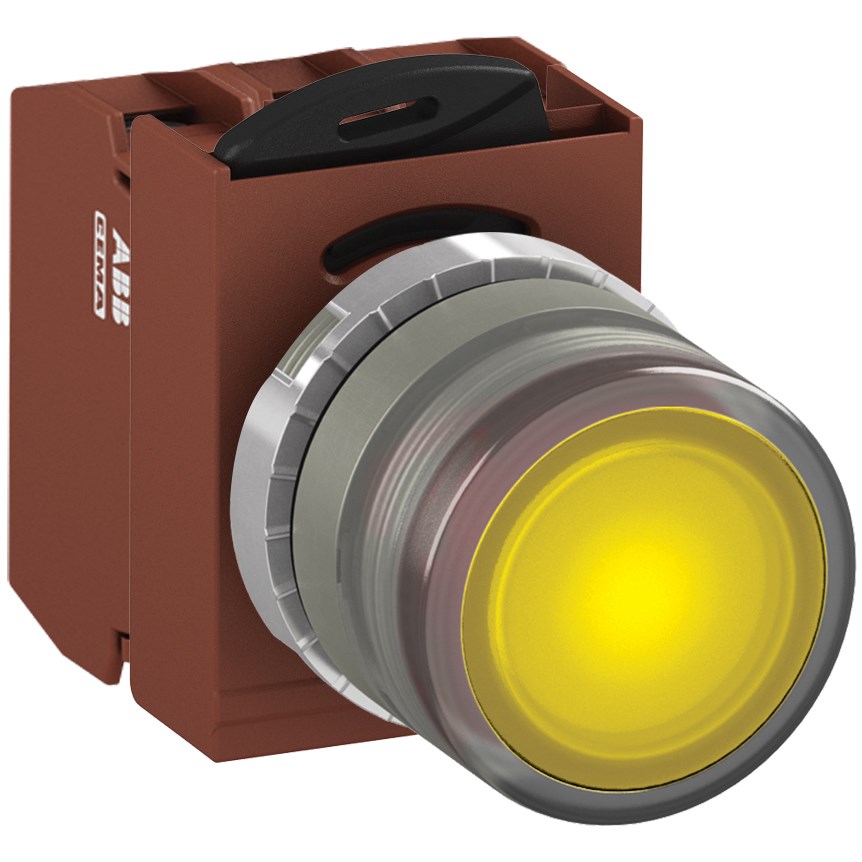

When selecting components for industrial and commercial applications, reliability and adherence to standards are paramount. This illuminated pushbutton switch is designed with these principles in mind, offering a robust solution tailored for demanding environments like mining, construction, and heavy industry.
Operating at a rated voltage of 24 VAC/DC, this device ensures consistent performance across various power systems. Its illumination feature utilizes a yellow LED lamp, providing clear visibility even in low-light settings. The LED technology not only enhances brightness but also offers energy efficiency and longevity compared to traditional lighting solutions.
One of the standout features is its high degree of protection rated at IP66. This rating signifies that the device is dust-tight and protected against powerful water jets—ideal for harsh outdoor or dusty environments often encountered in industrial settings.
The product meets several key standards including EN IEC 60947-5-1, EN IEC 60947-5-5, EN IEC 60073, EN IEC 60529 as well as UL 508 and CSA C22.2 No. 14 certifications. These certifications assure users of its compliance with international safety regulations and performance benchmarks.
Designed to withstand ambient temperatures ranging from -30 to 70 degrees Celsius, this pushbutton switch can operate reliably under extreme conditions without compromising functionality or safety.
Connection integrity is ensured through a screw-type connection method which provides secure electrical contacts essential for maintaining system stability over time. With a rated insulation voltage of 690 V and an impulse withstand voltage of up to 4 kV, this component is engineered to handle unexpected surges effectively.
The actuator type is flush with a diameter of 22 mm—standard sizing that facilitates easy integration into existing panels or control systems while maintaining aesthetic uniformity. The maintained function allows the button state to remain constant until manually changed by the operator—a critical feature for certain control processes requiring sustained input signals.
Its contact configuration consists of two normally open (2NO) contacts capable of handling thermal currents up to 10 A—suitable for most industrial relay operations without risk of overloads when used within specified limits.
Constructed with durability in mind, the bezel material comprises metal which adds strength and resistance against mechanical impacts common in heavy-duty environments. Additionally, it includes essential components such as an operator unit contact block maintained accessories LED block ensuring comprehensive functionality right out-of-the-box without needing additional purchases or modifications post-installation.
In summary whether you're involved in designing new systems upgrading existing setups or simply seeking reliable components that stand up under pressure this illuminated pushbutton switch delivers on all fronts combining technical excellence with practical usability making it an excellent choice across multiple sectors where precision efficiency matter most!
