When selecting components for industrial and commercial applications, reliability and compliance with standards are critical. This particular product is engineered to meet the demanding needs of sectors such as mining, construction, and heavy industry. Its robust design ensures it can withstand challenging environments while maintaining optimal performance.

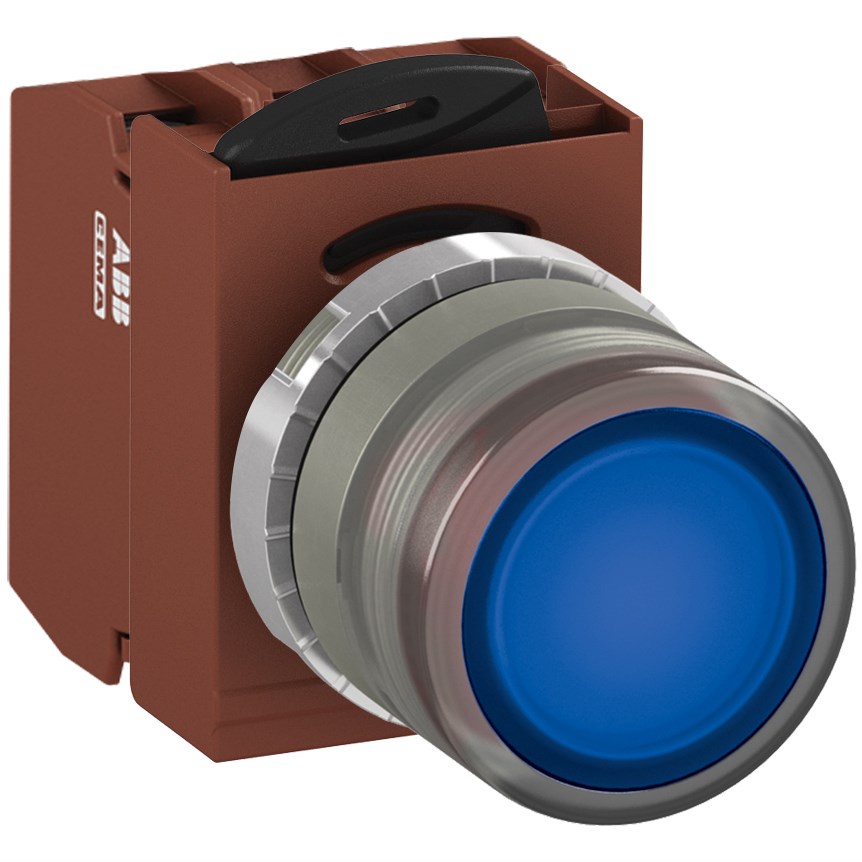

This device operates at a rated voltage of 110 VAC/DC, providing versatility across various electrical systems. It features an illuminated LED lamp in blue, offering clear visibility even in low-light conditions—a crucial aspect for operational safety and efficiency.
The degree of protection is IP66, indicating that the product is dust-tight and protected against powerful water jets. This makes it suitable for harsh environments where exposure to dust or water could be a concern.
Compliant with multiple international standards—EN IEC 60947-5-1, EN IEC 60947-5-5, EN IEC 60073, EN IEC 60529—as well as UL 508 and CSA C22.2 No.14 approvals, this device meets rigorous quality and safety benchmarks expected in global markets.
Designed to operate within an ambient temperature range from -30°C to 70°C, it can function reliably in extreme temperatures often encountered in industrial settings. The connection type is screw-based for secure installation.
For insulation purposes, it boasts a high rated insulation voltage of 690 V along with a rated impulse withstand voltage of 4 kV—ensuring durability against electrical transients.
The contact configuration consists of two normally closed (2NC) contacts which are essential for fail-safe operations commonly required in industrial control systems. With a flush actuator type and a standard diameter cutout size of 22 mm, installation becomes straightforward without requiring specialized tools or modifications.
A key feature is its momentary function which allows operators to initiate temporary actions without latching mechanisms—ideal for processes that require short-duration controls. The light blocks used are LED blocks known for their longevity and energy efficiency compared to traditional lighting solutions.
Constructed with a metal bezel material provides added durability while enhancing the aesthetic appeal—a balance between form and function that reflects modern engineering practices.
Included accessories such as the operator unit, contact block maintained accessories alongside the LED block ensure comprehensive functionality right out-of-the-box reducing additional procurement steps or compatibility concerns during assembly stages.
