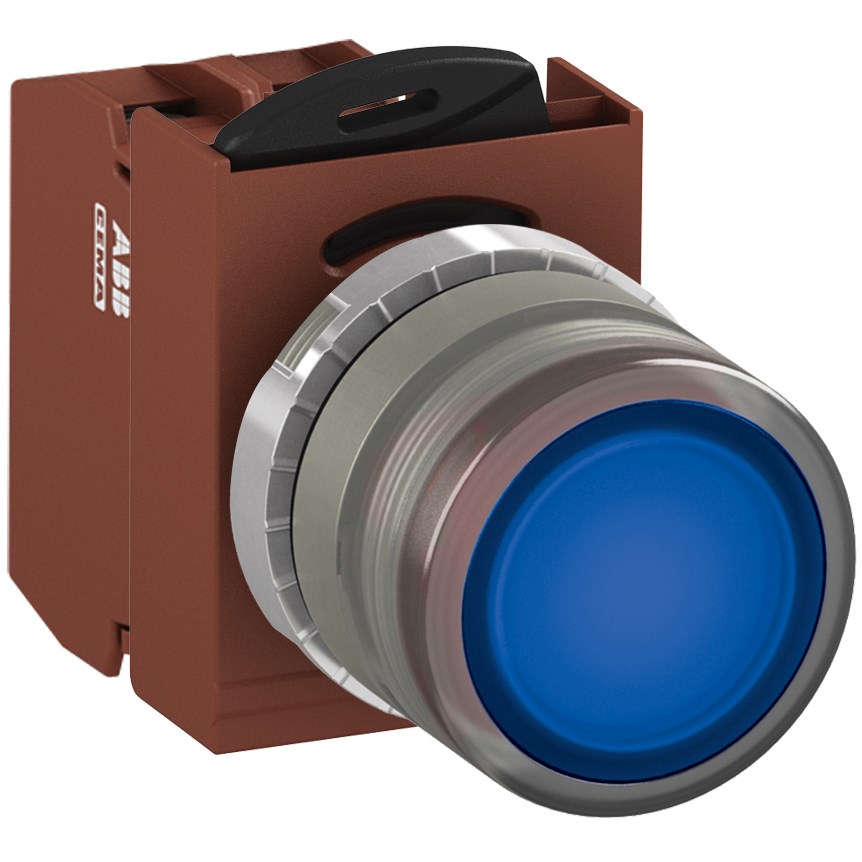

For professionals in the mining, construction, and heavy industry sectors seeking reliable and robust components, this illuminated pushbutton switch offers a blend of durability and functionality. With its rated voltage of 24 VAC/DC and an IP66 degree of protection, it is well-suited for challenging environments where dust and moisture resistance are crucial.
This device adheres to multiple international standards such as EN IEC 60947-5-1, EN IEC 60947-5-5, EN IEC 60073, EN IEC 60529, UL 508, and CSA C22.2 No. 14. These certifications underscore its compliance with global safety and performance benchmarks.
Designed to withstand ambient temperatures ranging from -30 to 70 degrees Celsius, this component ensures operational reliability across diverse climatic conditions. The screw connection type facilitates secure installation while maintaining ease of use.
With a rated insulation voltage of up to 690 V and a rated impulse withstand voltage of 4 kV, the switch is engineered for high-stress electrical environments. Its contact configuration features a single normally open (1NO) contact setup that supports momentary functions—a critical feature for applications requiring temporary engagement.
The actuator's flush design is complemented by a robust metal bezel material that enhances both aesthetic appeal and mechanical strength. The unit's diameter matches standard specifications at 22 mm with an identical cutout size for seamless integration into existing panels or systems.
Illumination is provided by an energy-efficient blue LED lamp housed within an LED block light type—ideal for clear visual indication even under low-light conditions. This illumination aids in quick identification during operation or maintenance tasks.
Included with the product are essential components such as the operator mechanism itself along with maintained accessories ensuring comprehensive functionality upon installation without additional purchases necessary.
In summary, this industrial-grade pushbutton switch combines advanced electrical specifications with practical design elements tailored to demanding applications in heavy industries like mining or construction—offering peace of mind through proven performance metrics backed by international approvals.
