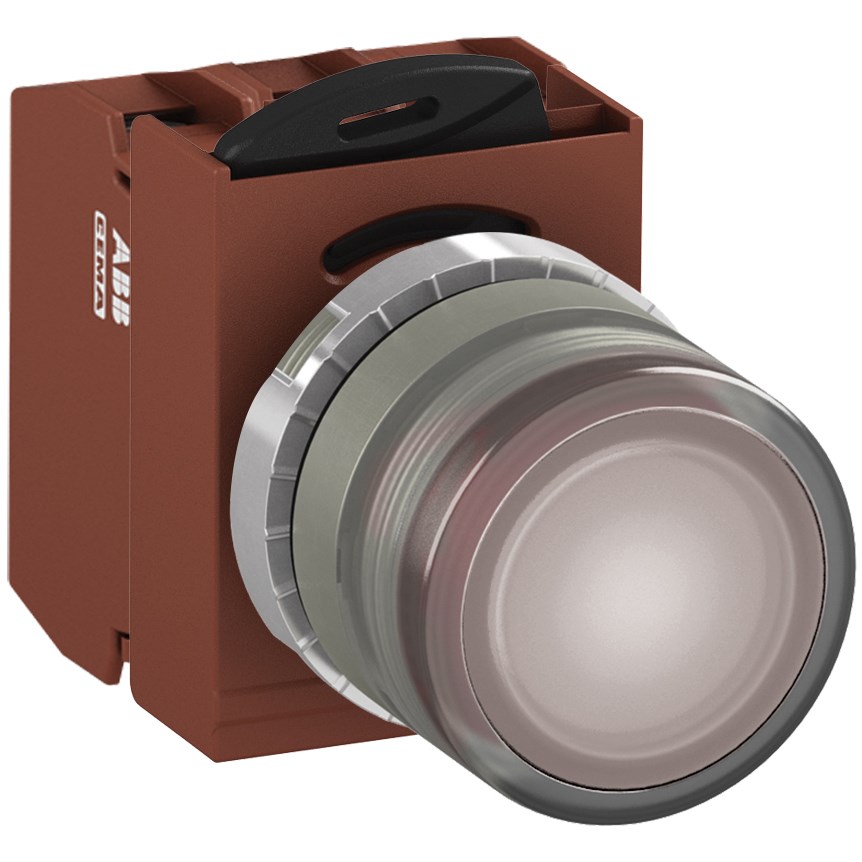

ABB MMPIFCOSL402 Illuminated Pushbutton Kit 22mm Flush Momentary Clear 230VAC/DC 2NC Screw LED Block

Product Code: MMPIFCOSL402

  • 230 VAC/DC illuminated pushbutton
  • IP66 protection for harsh environments
  • Operates in -30 to 70°C range
  • Durable metal bezel, flush actuator
  • Suitable for mining, construction use
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Contacts 2NC
LED Block Rated Voltage 230 VAC
Bezel Material Metal
Product Type Pushbutton Kit
Brand ABB
Actuator Type Flush
Ambient Temperature -30 to 70 deg C
Application For mining, construction and heavy industry applications
Bezel Material Metal
Colour Clear
Connection Type Screw
Contact Configuration 2NC
Cutout Size 22 mm
Degree of Protection IP66
Diameter 22 mm
Function Momentary
Illumination Illuminated
Includes Operator, Contact Block, Maintained Accessories, LED Block and LED
Lamp Colour Clear
Lamp Type LED
Light Blocks Type LED Block
Rated Impulse Withstand Voltage 4 kV
Rated Insulation Voltage 690 V
Rated Thermal Current 10 A
Rated Voltage 230 VAC/DC
Standards and Approvals EN IEC 60947-5-1, EN IEC 60947-5-5, EN IEC 60073, EN IEC 60529, UL 508, CSA C22.2 No. 14
