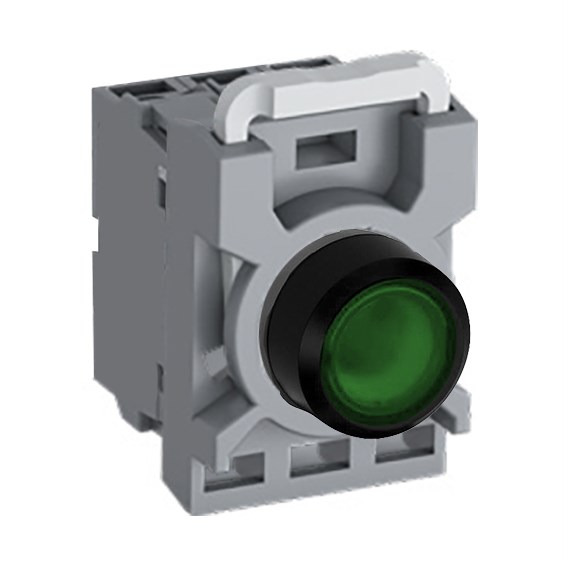

For professionals in the industrial and commercial sectors seeking reliable components, this illuminated actuator offers a blend of functionality and compliance with stringent standards. Operating at a rated voltage of 230 VAC/DC, it is designed to meet diverse application needs. The device features an IP66 front protection rating, ensuring resilience against dust and powerful water jets, while the terminal side holds an IP20 rating for basic protection against solid objects.
Engineered to comply with multiple international standards such as EN IEC 60947-1, EN IEC 60947-5-1, and UL 508 among others, this product assures quality and safety in operation. It also meets CSA C22.2 No. 14 standards for Canada, making it suitable for use in various regions.
The actuator operates efficiently within a wide ambient temperature range from -25 to 70 degrees Celsius, which makes it versatile across different environmental conditions. Its rated insulation voltage stands at an impressive 690 V with a rated impulse withstand voltage of 6 kV, ensuring robust performance under transient voltages.
With a contact configuration of two normally open (2NO) contacts and a momentary function type, this actuator is ideal for applications requiring temporary activation or signaling. The flush actuator type provides ease of use without protruding elements that could be accidentally activated.
Constructed with practicality in mind, the bezel material is made from durable plastic while maintaining an aesthetically pleasing appearance thanks to its green LED lamp color. This choice not only enhances visibility but also ensures energy efficiency due to the LED technology employed.
Installation is straightforward with a standard cutout size of 22 mm diameter matching industry norms for panel mounting components. The package includes all necessary parts: operator unit, contact block holder, contact block itself as well as the LED block—streamlining assembly processes on-site.
Finally yet importantly is its rated thermal current capacity standing at 10 A which supports moderate power loads typical in control circuits or signaling devices within automation systems.
Overall this illuminated actuator combines durability compliance versatility into one comprehensive solution suited perfectly towards meeting technical requirements across varied industrial contexts.
