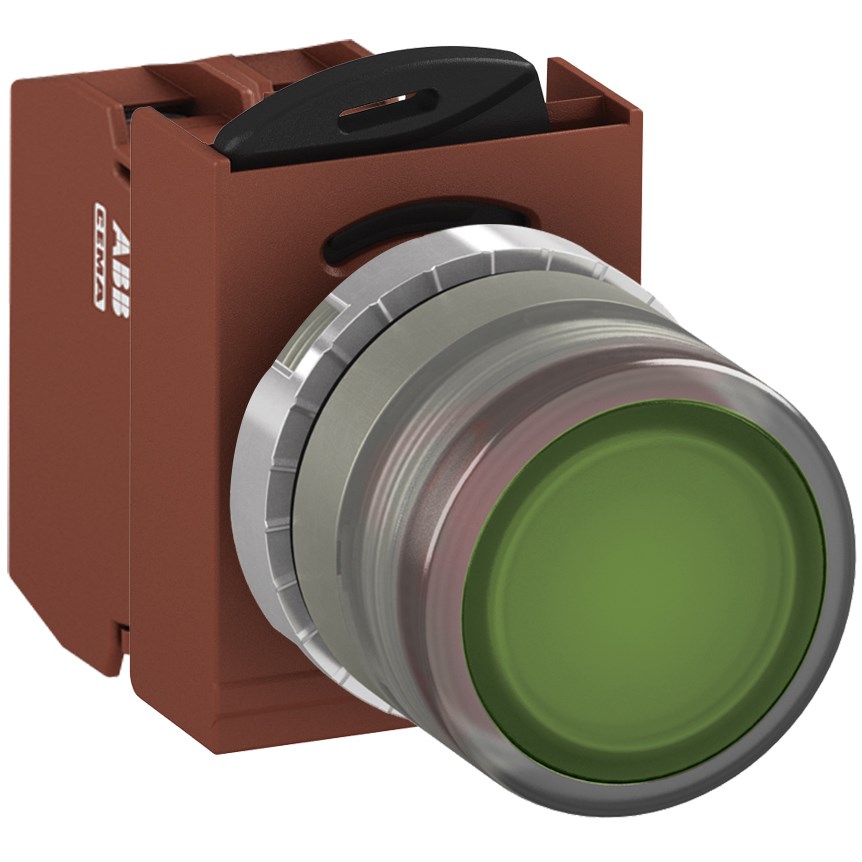

When it comes to robust and reliable control components for industrial applications, this illuminated pushbutton stands out as a dependable choice. Designed with versatility in mind, it operates seamlessly on both 230 VAC and DC power sources, providing flexibility across various installations.
The product boasts an IP66 degree of protection, ensuring resilience against dust and powerful water jets. This makes it particularly suitable for challenging environments commonly found in mining, construction, and heavy industry sectors.
Compliance with standards such as EN IEC 60947-5-1, EN IEC 60947-5-5, EN IEC 60073, EN IEC 60529 along with UL 508 and CSA C22.2 No.14 certifications assures you of its safety and reliability in demanding conditions. The operating temperature range from -30 to 70 degrees Celsius further enhances its adaptability to extreme weather conditions.
A screw connection type simplifies installation while maintaining secure electrical contact. The rated insulation voltage is set at a substantial 690 V with a rated impulse withstand voltage of 4 kV, highlighting its capability to handle transient voltages effectively.
Featuring a flush actuator type with a diameter of 22 mm, the pushbutton offers an ergonomic design that fits standard panel cutouts effortlessly. Its momentary function provides immediate response when activated without latching into position—ideal for operations requiring precise control inputs.
Illumination is provided by an LED lamp in green color which ensures visibility even under poor lighting conditions while consuming minimal power compared to traditional bulbs. The light blocks are designed as LED blocks contributing to long-lasting performance without frequent replacements.
Constructed with a metal bezel material adds durability while maintaining aesthetic appeal suitable for modern industrial settings. With a rated thermal current capacity of up to 10 A this device supports high-current applications efficiently without overheating risks.
Included accessories such as the operator contact block maintained accessories LED block and LED make this product ready-to-use straight out of the box saving time during setup processes often encountered on-site.
In summary whether you're upgrading existing systems or planning new installations this illuminated pushbutton offers reliable performance coupled with practical features tailored specifically for tough industrial environments where every component must meet stringent operational demands consistently over time.
