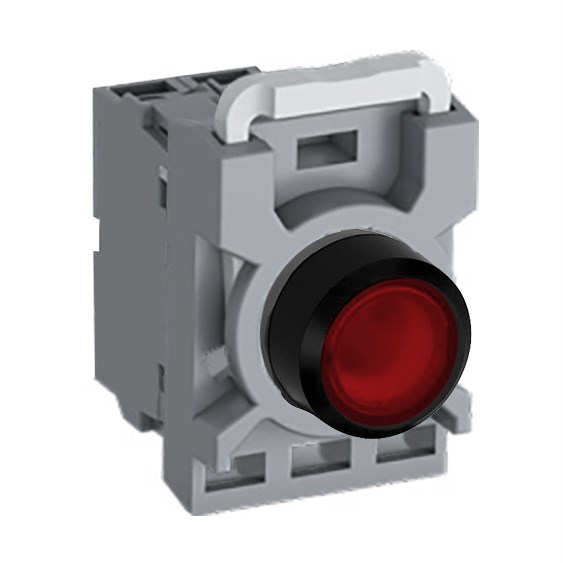

ABB MPPIFRO201 Illuminated Pushbutton Kit 22mm Flush Momentary Red 110-130VAC/DC 1NC

Product Code: MPPIFRO201

  • Illuminated pushbutton with red LED
  • Flush actuator, 22 mm diameter
  • IP66 front protection rating
  • Operates at 110-130 VAC/DC
  • Includes operator and contact block
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Contacts 1NC
Rated Voltage AC (V) 110 - 130
LED Block Rated Voltage 110-130 VAC
Bezel Material Plastic
Product Type Pushbutton Kit
Brand ABB
Actuator Type Flush
Ambient Temperature -25 to 70 deg C
Bezel Material Plastic
Colour Red
Contact Configuration 1NC
Cutout Size 22 mm
Degree of Protection IP66 Front, IP20 Terminal
Diameter 22 mm
Function Momentary
Illumination Illuminated
Includes Operator, Contact Block, Contact Block Holder and LED Block
Lamp Colour Red
Lamp Type LED
LED Colour Red
Mode of Operation Momentary
Rated Impulse Withstand Voltage 6 kV
Rated Insulation Voltage 690 V
Rated Thermal Current 10 A
Rated Voltage 110-130 VAC/DC
Standards and Approvals EN IEC 60947-1, EN IEC 60947-5-1, EN IEC 60947-5-5, EN IEC 60073, EN IEC 60529, EN 50013, DIN 40050-9, UL 508, CSA C22.2 No. 14

Description

This illuminated pushbutton kit features a red flush momentary button with an integrated red LED. It operates on 110-130V AC power and has a 1NC contact configuration. The kit is part of a modular plastic range and has an IP66 rating for the front and an IP20 rating for the terminals.
