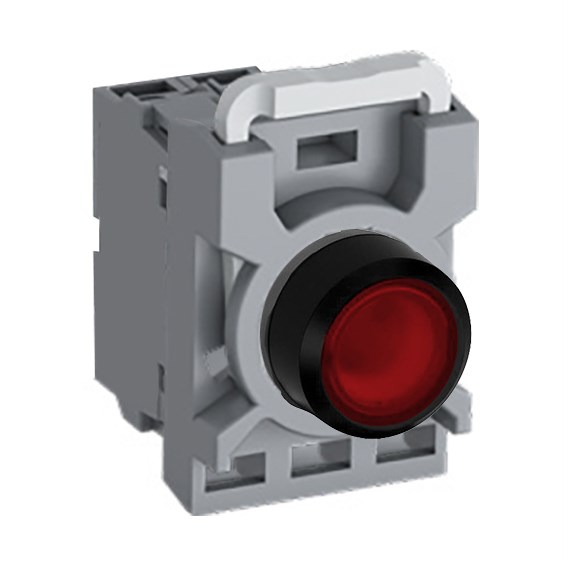

When evaluating industrial components for your project, it's crucial to consider both functionality and compliance with relevant standards. This illuminated pushbutton switch offers a robust solution for those seeking reliability and adherence to international electrical standards.
Designed to operate within a rated voltage of 110-130 VAC/DC, this switch ensures versatility in various applications. The illumination feature, powered by an LED lamp in a striking red color, provides clear visibility even in low-light environments, enhancing operational safety and efficiency.
With an IP66 rating at the front and IP20 at the terminal, this switch is designed to withstand harsh conditions while offering protection against dust ingress and powerful water jets. It's suitable for demanding industrial settings where durability is paramount.
The product meets several international standards including EN IEC 60947-1, EN IEC 60947-5-1, EN IEC 60947-5-5, among others. These certifications affirm its quality and compatibility with global electrical systems. Additionally, it complies with UL 508 and CSA C22.2 No. 14 standards which are essential for North American markets.
Operating efficiently between -25°C to 70°C ambient temperatures makes it adaptable across diverse climatic conditions without compromising performance. Its rated insulation voltage stands at an impressive 690 V while the rated impulse withstand voltage reaches up to 6 kV—indicative of its capability to handle transient overvoltages effectively.
Featuring a simple yet effective contact configuration of 1NO (normally open), this momentary function actuator ensures that circuits are completed only when necessary—ideal for applications requiring temporary activation like machine start or stop operations.
The flush actuator type complements installations where space conservation is critical without sacrificing accessibility or ease of use. With a standard diameter of 22 mm that matches the cutout size needed for installation, integration into existing panels is straightforward.
Built with practicality in mind, this unit includes not just the operator but also the contact block holder and LED block—all housed within a durable plastic bezel material ensuring longevity against mechanical wear and tear.
Rated thermal current capacity stands firm at 10 A making it suitable for moderate power applications typically found in commercial or light industrial environments needing reliable switching solutions daily.
This combination of features positions our illuminated pushbutton as an excellent choice balancing cost-effectiveness with high performance tailored specifically towards professionals who value consistent operation backed by rigorous safety approvals.
