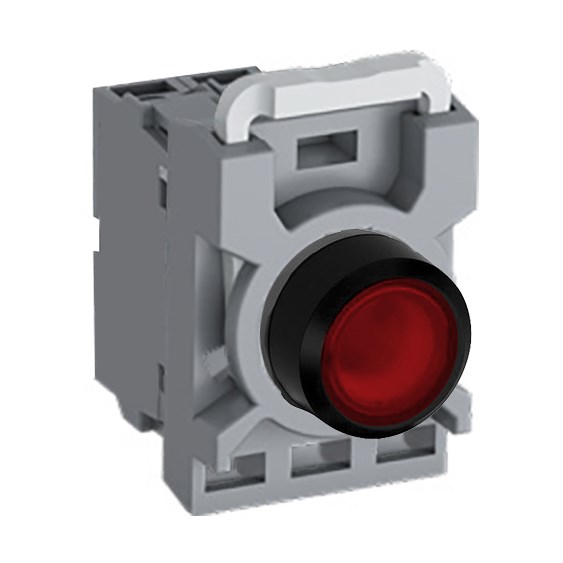

When it comes to selecting a reliable and efficient industrial control component, this illuminated pushbutton stands out with its robust design and dependable performance. Engineered for both commercial and industrial applications, it operates at a rated voltage of 12 VAC/DC, making it versatile for various low-voltage systems.
The pushbutton is designed with an IP66 degree of protection at the front, ensuring it's dust-tight and protected against powerful water jets, ideal for harsh environments. The terminal carries an IP20 rating, providing basic protection against finger contact. Its compliance with numerous standards such as EN IEC 60947-1, EN IEC 60947-5-1, EN IEC 60947-5-5, UL 508, and CSA C22.2 No. 14 underscores its reliability and adherence to international safety norms.
Operating efficiently across a wide ambient temperature range of -25 to 70 degrees Celsius ensures that this device performs reliably in various climatic conditions. It boasts a rated insulation voltage of 690 V and a rated impulse withstand voltage of 6 kV which speaks volumes about its resilience against electrical surges.
This momentary function pushbutton features a flush actuator type with a compact diameter of 22 mm making it suitable for installations where space is limited yet functionality cannot be compromised. The LED illumination in red provides clear visibility even in dimly lit environments enhancing operational efficiency.
With a contact configuration of one normally open (1NO), it offers straightforward integration into existing circuits while maintaining simplicity in operation. Additionally, the device supports a rated thermal current up to 10 A catering to moderate power requirements without overheating concerns.
Constructed with durability in mind the bezel material is made from sturdy plastic ensuring longevity without adding unnecessary weight or complexity during installation or maintenance procedures. The cutout size also matches the diameter at 22 mm allowing seamless fitting into standard panels or enclosures.
Included components such as the operator contact block contact block holder and LED block provide everything needed for straightforward assembly reducing downtime during setup or replacement tasks.
In summary this illuminated pushbutton combines essential features like reliability ease-of-use compliance with international standards and adaptability across different environmental conditions making it an excellent choice for professionals seeking quality components that meet technical specifications without fussing over unnecessary details.
