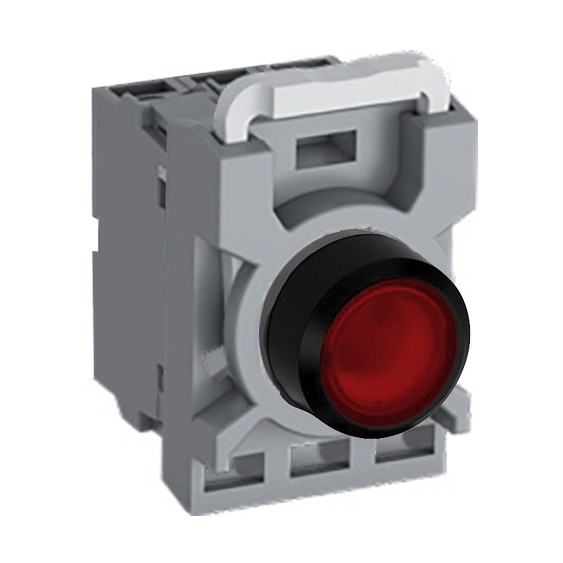

When selecting components for your industrial or commercial electrical systems, precision and reliability are paramount. This illuminated pushbutton is a robust choice that meets stringent standards while offering user-friendly operation. Designed to operate at 12 VAC/DC, this device ensures seamless integration into various low-voltage applications.
The pushbutton's illumination feature enhances visibility and usability, with a red LED lamp providing clear indication even in dimly lit environments. Its flush actuator type and 22 mm diameter make it suitable for control panels where space efficiency is crucial.
Durability is assured with an IP66 rating on the front side, protecting against dust ingress and powerful water jets. The terminal side carries an IP20 rating, ensuring essential protection during installation and maintenance. The device complies with multiple international standards such as EN IEC 60947-1, UL 508, and CSA C22.2 No. 14 among others, reflecting its adherence to global safety requirements.
Engineered to withstand ambient temperatures ranging from -25 to 70 degrees Celsius, this pushbutton can function reliably across various environmental conditions—ideal for both indoor and outdoor applications subject to temperature fluctuations.
With a rated insulation voltage of 690 V and an impulse withstand voltage of up to 6 kV, the pushbutton provides excellent electrical endurance. Featuring a contact configuration of 2NO (two normally open contacts), it supports straightforward circuit integration while maintaining operational integrity under load conditions thanks to its rated thermal current of 10 A.
The bezel is crafted from durable plastic material designed not only for longevity but also for ease of cleaning—a practical consideration in environments where hygiene is critical or exposure to contaminants is possible.
Installation flexibility is enhanced by the inclusion of essential components: the operator unit itself along with a contact block holder and LED block ensure quick setup without additional purchases required.
For those requiring precise specifications in their control systems design or upgrade projects, this momentary function pushbutton offers reliable performance backed by comprehensive certifications—making it a dependable choice in demanding settings where both compliance and functionality are non-negotiable factors.
