When it comes to selecting reliable and efficient components for industrial and commercial applications, understanding the specifications is crucial. This particular product offers a robust solution with its 220 VDC rated voltage, making it suitable for various electrical systems that demand dependable performance.

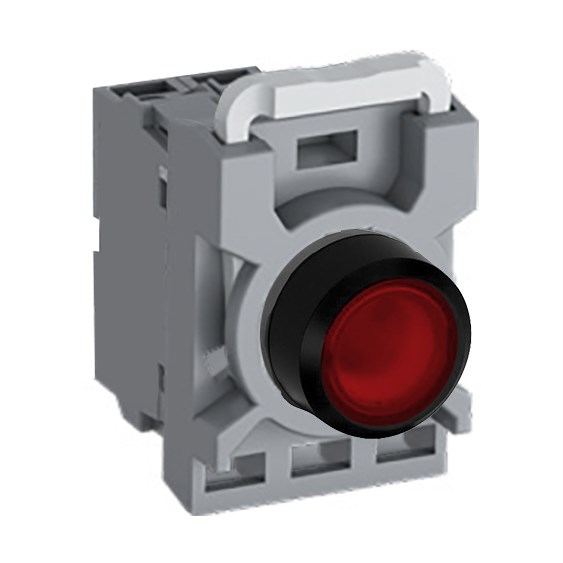

The product features an illuminated design, enhancing visibility in operational environments. Its illumination is provided by a red LED lamp, which not only ensures long-lasting performance but also maintains energy efficiency. The flush actuator type adds to its sleek profile, minimizing protrusions and potential obstructions in control panels or equipment surfaces.
In terms of protection, this component boasts an impressive IP66 rating on the front side and an IP20 rating at the terminal. This means it provides excellent resistance against dust and powerful water jets from any direction while maintaining basic protection against touch at the terminals. Such features make it ideal for challenging environments where durability is paramount.
Conforming to numerous international standards such as EN IEC 60947-1, EN IEC 60947-5-1, EN IEC 60947-5-5, EN IEC 60073, EN IEC 60529, EN 50013, DIN 40050-9 as well as UL 508 and CSA C22.2 No.14 approvals ensure that this product meets stringent safety and quality requirements across different regions.
The ambient temperature range of -25 to 70 degrees Celsius allows this device to perform reliably under varying environmental conditions without compromising functionality or safety. It has a rated insulation voltage of up to 690 V which enhances its capability in handling high-voltage applications safely.
Featuring a contact configuration of one normally open (1NO), this device supports straightforward integration into circuits requiring momentary action—a common requirement in pushbutton operations within control systems.
With a rated impulse withstand voltage of up to 6 kV and a thermal current capacity of up to 10 A, this component demonstrates resilience against transient overvoltages while supporting substantial current flow during operation.
Constructed with a plastic bezel material for durability without adding unnecessary weight or complexity during installation or maintenance tasks; its cutout size matches industry-standard dimensions at 22 mm ensuring compatibility with existing setups or new installations alike.
Included with your purchase are all necessary components: operator unit itself along with contact block holder plus LED block ensuring you have everything needed right out-of-the-box—streamlining setup processes significantly reducing downtime associated typically seen when sourcing parts separately from multiple vendors independently instead!
