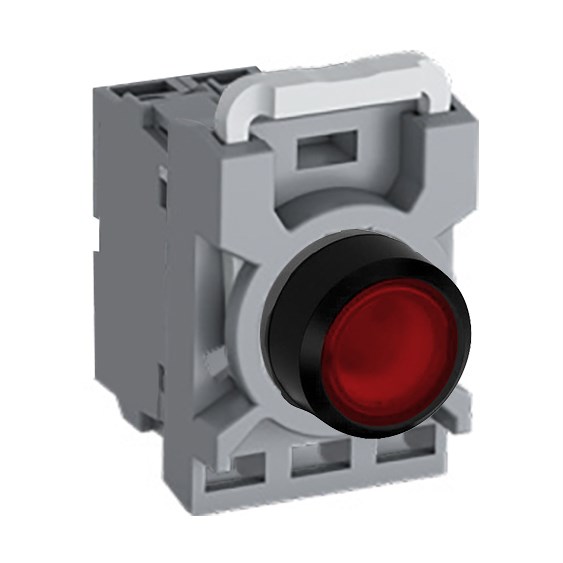

ABB MPPIFRO401 Illuminated Pushbutton Kit 22mm Flush Momentary Red 230VAC/DC 1NC

Product Code: MPPIFRO401

  • Illuminated red LED for clear visibility
  • IP66 front protection for tough environments
  • Operates at 230 VAC/DC with a flush actuator
  • Supports momentary function with 1NC contact
  • Includes operator, contact block, and LED block
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Contacts 1NC
Rated Frequency (Hz) 50/60
Rated Voltage AC (V) 230
LED Block Rated Voltage 230 VAC
Bezel Material Plastic
Product Type Pushbutton Kit
Brand ABB
Actuator Type Flush
Ambient Temperature -25 to 70 deg C
Bezel Material Plastic
Colour Red
Contact Configuration 1NC
Cutout Size 22 mm
Degree of Protection IP66 Front, IP20 Terminal
Diameter 22 mm
Function Momentary
Illumination Illuminated
Includes Operator, Contact Block, Contact Block Holder and LED Block
Lamp Colour Red
Lamp Type LED
LED Colour Red
Mode of Operation Momentary
Rated Impulse Withstand Voltage 6 kV
Rated Insulation Voltage 690 V
Rated Thermal Current 10 A
Rated Voltage 230 VAC/DC
Standards and Approvals EN IEC 60947-1, EN IEC 60947-5-1, EN IEC 60947-5-5, EN IEC 60073, EN IEC 60529, EN 50013, DIN 40050-9, UL 508, CSA C22.2 No. 14

Description

The Illuminated Pushbutton Red Momentary Flush is a modular plastic range kit that includes an operator, contact blocks, a contact block holder, and an LED block. It features 1NC contacts and operates at 230VAC.
