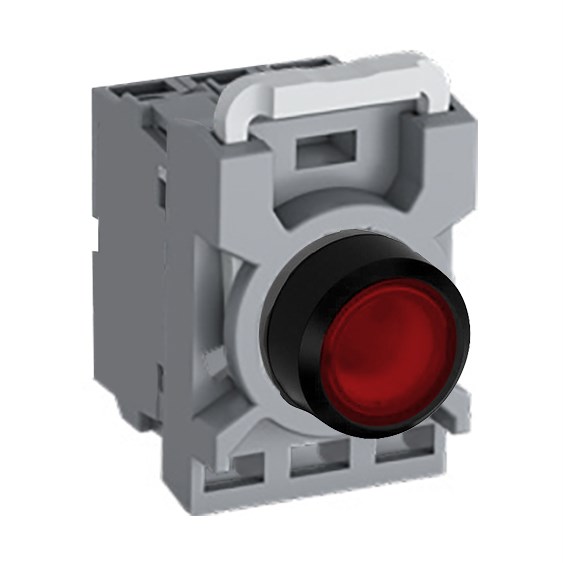

When it comes to reliable and efficient components for industrial and commercial applications, this illuminated pushbutton stands out with its robust design and impressive specifications. Operating at a rated voltage of 230 VAC/DC, this component is built to withstand the demands of various environments while ensuring optimal performance.
The pushbutton features an IP66 rating on the front, providing exceptional protection against dust and powerful water jets, making it suitable for harsh conditions. The terminal has an IP20 rating which ensures basic protection against finger contact. It complies with numerous standards including EN IEC 60947-1, EN IEC 60947-5-1, EN IEC 60947-5-5, as well as UL 508 and CSA C22.2 No. 14 certifications, guaranteeing adherence to international safety and quality benchmarks.
Designed to operate effectively in temperatures ranging from -25 to 70 degrees Celsius, this unit is versatile enough for use in diverse climates without compromising functionality. Its rated insulation voltage is a substantial 690 V with a rated impulse withstand voltage of up to 6 kV—indicative of its ability to handle electrical surges.
The contact configuration includes one normally open (NO) contact and one normally closed (NC) contact. This allows for flexibility in circuit design where both opening and closing operations are required within the same device.
A key feature is its flush actuator type paired with a red LED lamp that ensures clear visibility in various lighting conditions. The momentary function means that the switch returns to its original position once released—a critical attribute for many control applications.
Its diameter measures at a standard size of 22 mm which matches common cutout dimensions used across industries ensuring easy integration into existing panels or systems. Rated thermal current stands at an ample 10 A supporting high-current applications.
Constructed from durable plastic material for the bezel, this pushbutton not only offers longevity but also maintains cost-effectiveness without sacrificing quality or performance. Included in the package are essential components such as the operator itself along with a contact block holder and LED block simplifying installation processes by providing all necessary parts together.
Overall, whether you're upgrading your system or setting up new installations requiring dependable operation under demanding conditions—this illuminated pushbutton presents itself as an ideal choice balancing between advanced technical capabilities alongside user-friendly attributes suitable across varied sectors within Australia’s industrial landscape.
