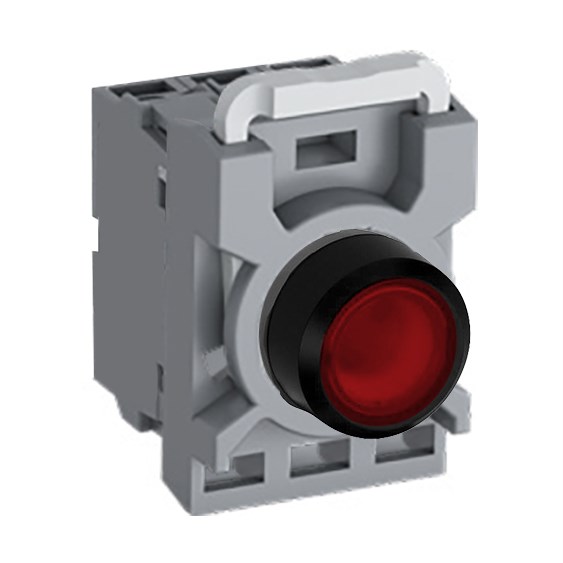

When selecting components for industrial and commercial applications, ensuring compatibility with technical requirements is paramount. This illuminated pushbutton switch offers a reliable solution, designed to meet rigorous standards while providing dependable performance.
Rated for both AC and DC at 230 volts, this pushbutton is versatile enough to fit into various electrical systems. The IP66 front protection ensures resistance against dust and powerful water jets, making it suitable for harsh environments. Meanwhile, the IP20 terminal protection offers basic safety for internal connections.
Adhering to numerous international standards such as EN IEC 60947-1 and UL 508, this product guarantees compliance with essential safety and operational guidelines. It also meets the CSA C22.2 No. 14 standard, further certifying its suitability in North American markets.
The ambient temperature range from -25°C to 70°C allows this pushbutton to function effectively across diverse climates without compromising performance. With a rated insulation voltage of up to 690 V and an impulse withstand voltage of 6 kV, it provides robust insulation properties necessary for industrial settings.
Featuring a contact configuration of two normally open (2NO) contacts, it facilitates straightforward integration into control circuits where momentary action is required. The actuator type is flush with a diameter of 22 mm—standard dimensions that ensure easy installation within compatible panels or enclosures.
Illumination is achieved through an LED lamp in red color—a choice that enhances visibility in low-light conditions while maintaining energy efficiency and longevity compared to traditional incandescent bulbs.
The momentary function means the button returns to its original position after actuation—ideal for applications requiring temporary activation signals. Rated thermal current stands at 10 A, supporting sufficient current flow without overheating risks under normal operating conditions.
Constructed with a plastic bezel material, the design balances durability with cost-effectiveness. Installation requires a cutout size of precisely 22 mm—a common specification that simplifies retrofitting or upgrading existing setups.
Included in the package are the operator unit itself along with essential components like the contact block, contact block holder, and LED block—ensuring you have everything needed for immediate setup without additional purchases or modifications.
Overall, this illuminated pushbutton switch presents itself as an efficient choice for professionals seeking reliability combined with compliance across multiple standards in demanding environments.
