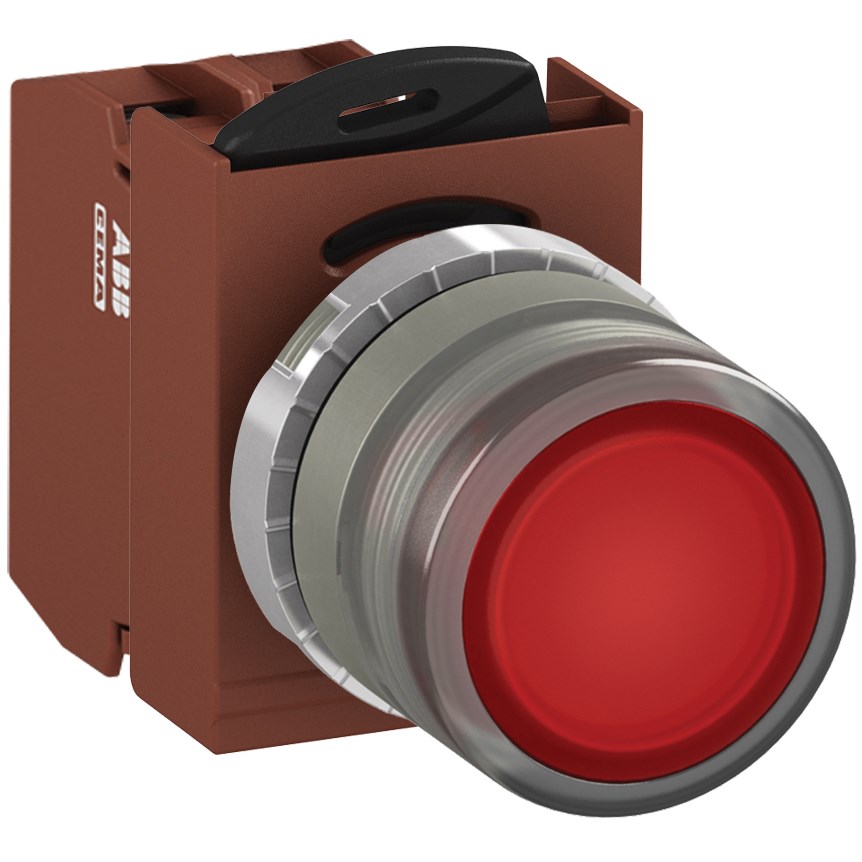

In the demanding environments of mining, construction, and heavy industry, reliability and durability are paramount. This illuminated pushbutton switch stands out as a robust solution designed to meet these rigorous requirements. With its rated voltage of 230 VAC/DC and an impressive degree of protection at IP66, this device is engineered to withstand harsh conditions, making it suitable for both indoor and outdoor installations.
The switch complies with multiple international standards including EN IEC 60947-5-1, EN IEC 60947-5-5, EN IEC 60073, EN IEC 60529 along with UL 508 and CSA C22.2 No. 14 certifications. These approvals underscore its quality and safety credentials in electrical engineering applications.
Functionality is at the heart of this product's design. It features a momentary function with a flush actuator type that ensures smooth operation every time it's engaged. The contact configuration is set at 1NO (normally open), providing straightforward integration into existing systems.
A standout feature is its illumination capability through an LED lamp in red color, enhancing visibility even in low-light conditions—a crucial aspect for safety-critical operations. The LED block used here not only provides long-lasting performance but also reduces maintenance needs due to its energy-efficient nature.
Built to endure extreme temperatures ranging from -30°C to +70°C, this switch maintains operational integrity across diverse climates found in industrial settings. Additionally, the unit offers a rated insulation voltage of up to 690 V and can handle a rated thermal current of up to 10 A—ensuring robust performance under load.
Installation is made simple with a screw connection type while the metal bezel material adds an extra layer of ruggedness against physical impacts or wear over time. The standard cutout size required for installation measures at precisely 22 mm diameter which aligns perfectly with common panel designs.
Included within the package are essential components such as the operator itself, contact block maintained accessories along with an LED block—providing everything needed for immediate deployment without additional purchases.
This pushbutton switch clearly caters to professionals who prioritize efficiency combined with high-quality craftsmanship in their equipment choices—making it an ideal candidate for those looking to enhance their operational setups within challenging industrial landscapes.
