Product Code: MPPIFWO210

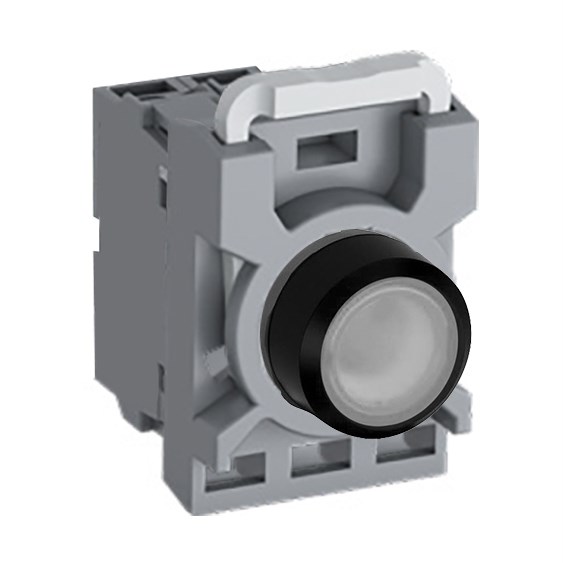

Illuminated pushbutton with white LED lamp
IP66 front protection, robust against dust and water
Operates in temperatures from -25 to 70°C
Flush actuator design with 22 mm diameter
Includes operator, contact block, and LED block

Specifications

Contacts	1NO
Rated Voltage AC (V)	110 - 130
LED Block Rated Voltage	110-130 VAC
Bezel Material	Plastic
Product Type	Pushbutton Kit
Brand	ABB
Actuator Type	Flush
Ambient Temperature	-25 to 70 deg C
Bezel Material	Plastic
Colour	White
Contact Configuration	1NO
Cutout Size	22 mm
Degree of Protection	IP66 Front, IP20 Terminal
Diameter	22 mm
Function	Momentary
Illumination	Illuminated
Includes	Operator, Contact Block, Contact Block Holder and LED Block
Lamp Colour	White
Lamp Type	LED
LED Colour	White
Mode of Operation	Momentary
Rated Impulse Withstand Voltage	6 kV
Rated Insulation Voltage	690 V
Rated Thermal Current	10 A
Rated Voltage	110-130 VAC/DC
Standards and Approvals	EN IEC 60947-1, EN IEC 60947-5-1, EN IEC 60947-5-5, EN IEC 60073, EN IEC 60529, EN 50013, DIN 40050-9, UL 508, CSA C22.2 No. 14

Description

This illuminated pushbutton kit is designed for flush mounting and features a white colour. It has a momentary action and comes with an integrated white LED. The kit operates on 110-130V AC power supply. The contact configuration is 1NO (normally open). It belongs to the modular plastic range and has an IP66 rating for the front panel, ensuring protection against dust and water. The terminals have an IP20 rating.
