Product Code: MPPIFWO010

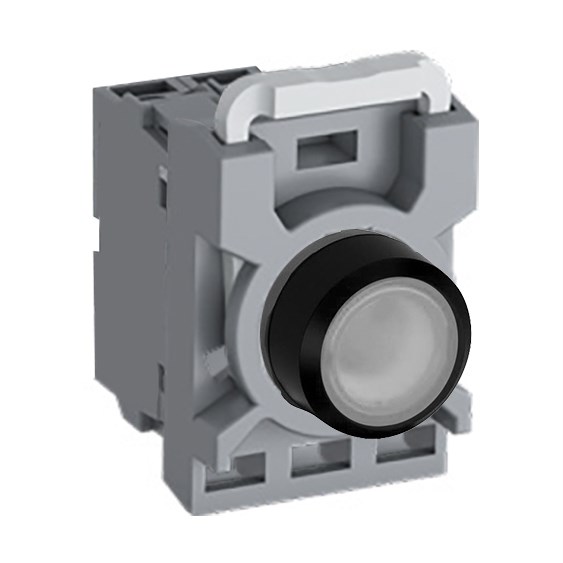

Illuminated pushbutton with white LED
IP66 front protection for harsh environments
Momentary function with flush actuator
Operates at 12 VAC/DC, thermal current 10 A
Includes operator and contact block holder

Specifications

Contacts	1NO
Rated Voltage DC (V)	12
LED Block Rated Voltage	12 VDC
Bezel Material	Plastic
Product Type	Pushbutton Kit
Brand	ABB
Actuator Type	Flush
Ambient Temperature	-25 to 70 deg C
Bezel Material	Plastic
Colour	White
Contact Configuration	1NO
Cutout Size	22 mm
Degree of Protection	IP66 Front, IP20 Terminal
Diameter	22 mm
Function	Momentary
Illumination	Illuminated
Includes	Operator, Contact Block, Contact Block Holder and LED Block
Lamp Colour	White
Lamp Type	LED
LED Colour	White
Mode of Operation	Momentary
Rated Impulse Withstand Voltage	6 kV
Rated Insulation Voltage	690 V
Rated Thermal Current	10 A
Rated Voltage	12 VAC/DC
Standards and Approvals	EN IEC 60947-1, EN IEC 60947-5-1, EN IEC 60947-5-5, EN IEC 60073, EN IEC 60529, EN 50013, DIN 40050-9, UL 508, CSA C22.2 No. 14

Description

The Illuminated Pushbutton Kit is a white flush momentary switch with an integrated white LED. It operates on 12V DC power and has a 1NO contact configuration. This kit is part of a modular plastic range and features an IP66 front rating for protection against dust and water, while the terminals have an IP20 rating.
