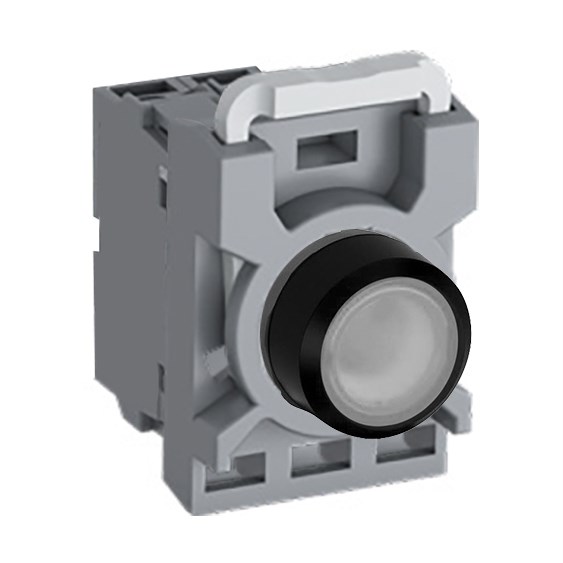

For professionals in the electrical engineering and automation industries, selecting the right components is key to ensuring system reliability and compliance with stringent standards. This momentary illuminated switch offers a robust solution for industrial and commercial applications, designed to meet demanding operational requirements.
Operating at a rated voltage of 220 VDC, this component features an LED illumination system that enhances visibility with its white lamp color. The flush actuator type ensures a sleek design while maintaining functionality. With a diameter and cutout size of 22 mm, it fits seamlessly into standard panels without requiring additional modifications.
The device is engineered for durability and safety, boasting an IP66 protection rating on the front side to guard against dust ingress and powerful water jets, while the terminal enjoys an IP20 rating for basic finger protection. It adheres to international standards including EN IEC 60947-1, EN IEC 60947-5-1, EN IEC 60947-5-5, as well as North American standards like UL 508 and CSA C22.2 No. 14.
Designed to withstand harsh environments, it operates effectively within ambient temperatures ranging from -25°C to +70°C. Its rated insulation voltage stands at an impressive 690 V with a rated impulse withstand voltage of up to 6 kV—ensuring resilience against transient overvoltages.
This switch includes essential components such as the operator, contact block, contact block holder, and LED block—all crafted from durable materials like plastic for the bezel—to ensure long-lasting performance even under frequent use conditions. The contact configuration is set at one normally closed (1NC), offering reliable operation for various control systems.
Rated with a thermal current capacity of up to 10 A, this product supports substantial electrical loads while maintaining optimal performance levels across different applications. Whether you're integrating it into new projects or replacing existing parts in your setup, this switch provides both efficiency and reliability tailored for professional needs in challenging settings.
In summary, this illuminated momentary switch delivers dependable operation backed by rigorous industry certifications—making it an excellent choice for those seeking quality assurance combined with practical functionality in their electrical installations.
