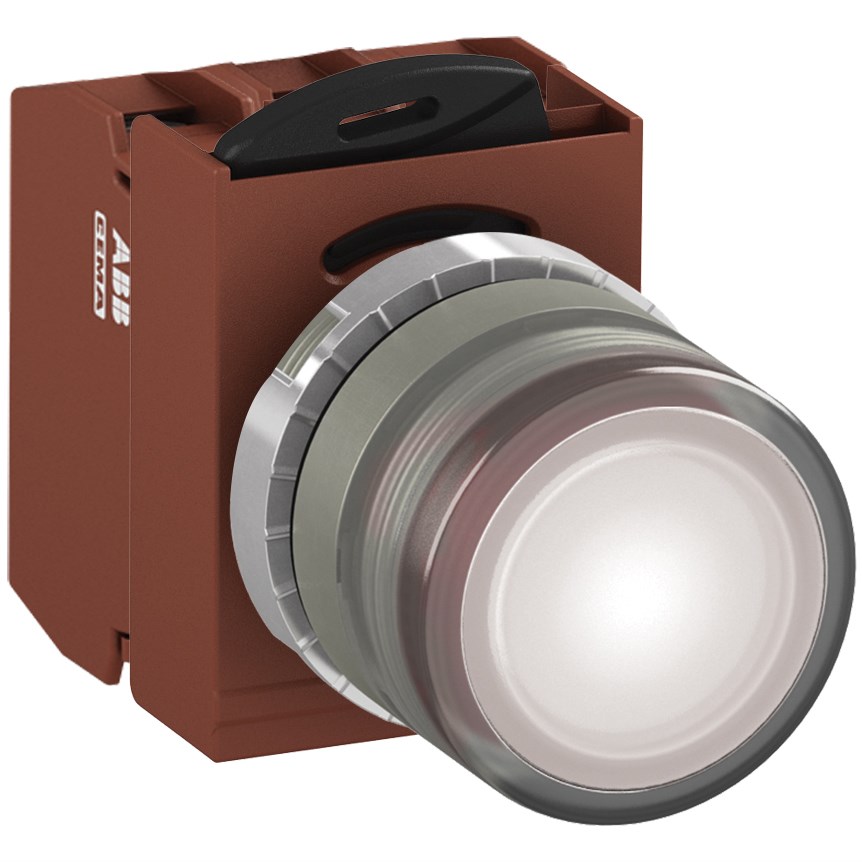

When selecting components for industrial and commercial applications, reliability and compliance with international standards are paramount. This illuminated pushbutton switch stands out as a robust choice, designed to meet rigorous demands across various sectors such as mining, construction, and heavy industry.
Operating at a rated voltage of 24 VAC/DC, this device is engineered for versatility in power systems. Its illumination feature enhances visibility in diverse environments, ensuring ease of operation even under challenging conditions. The flush actuator type provides a sleek profile while maintaining functionality.
The switch's degree of protection is rated at IP66, which signifies excellent resistance to dust ingress and powerful water jets from any direction—a critical factor when used in harsh environments. It adheres to multiple standards including EN IEC 60947-5-1 and UL 508, underscoring its global compliance and safety credentials.
With an ambient temperature range spanning -30 to 70 degrees Celsius, this component performs reliably across extreme temperatures. The faston connection type ensures quick and secure electrical connections during installation or maintenance.
Internally, the switch boasts a contact configuration of 1NO+1NC (one normally open and one normally closed), offering flexibility for varied circuit requirements. Its rated insulation voltage is an impressive 690 V with a rated impulse withstand voltage of 4 kV—indicative of its capacity to handle transient overvoltages effectively.
The diameter measures at 22 mm with a matching cutout size for straightforward panel integration. The lamp housed within uses the BA9S type base in white color—providing clear indication without ambiguity.
Constructed with durability in mind, the bezel material is metal—ensuring longevity against mechanical wear or environmental exposure. Rated thermal current stands at 10 A allowing it to support moderate loads comfortably without overheating concerns.
Included components such as the operator, contact block, maintained accessories along with the power supply (lamp block) ensure that you have all necessary parts for seamless integration into your system setup right out of the box.
In summary this illuminated pushbutton offers not just compliance but also practical features tailored towards demanding industrial applications making it an ideal choice where operational dependability cannot be compromised.
