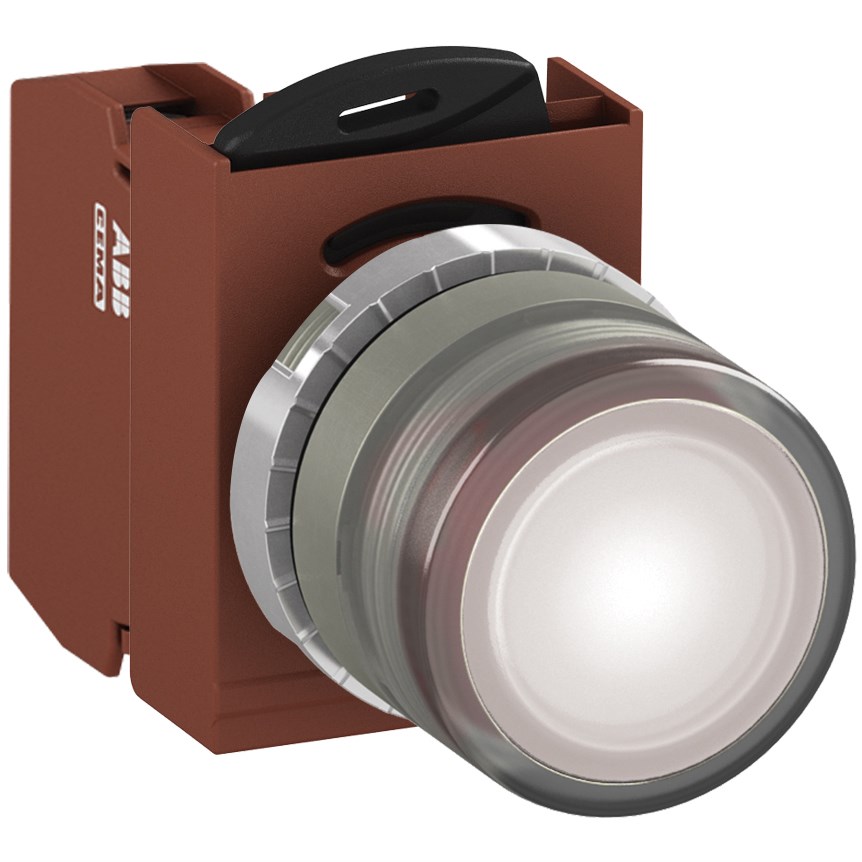

ABB MMPIFWOSP201 Illuminated Pushbutton Kit 22mm Flush Momentary White 24VAC/DC 1NC Screw Power Supply

Product Code: MMPIFWOSP201

  • Operates at 24 VAC/DC with IP66 protection
  • Compliant with EN IEC and UL standards
  • Wide temp range: -30 to 70°C
  • Screw connection, 1NC contact config
  • Durable metal bezel, 22 mm cutout size
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Contacts 1NC
LED Block Rated Voltage 24 VAC/DC
Bezel Material Metal
Product Type Pushbutton Kit
Brand ABB
Actuator Type Flush
Ambient Temperature -30 to 70 deg C
Application For mining, construction and heavy industry applications
Bezel Material Metal
Colour White
Connection Type Screw
Contact Configuration 1NC
Cutout Size 22 mm
Degree of Protection IP66
Diameter 22 mm
Function Momentary
Illumination Illuminated
Includes Operator, Contact Block, Maintained Accessories, Power Supply (Lamp Block) and Lamp
Lamp Colour White
Lamp Type BA9S
Light Blocks Type Power Supply
Rated Impulse Withstand Voltage 4 kV
Rated Insulation Voltage 690 V
Rated Thermal Current 10 A
Rated Voltage 24 VAC/DC
Standards and Approvals EN IEC 60947-5-1, EN IEC 60947-5-5, EN IEC 60073, EN IEC 60529, UL 508, CSA C22.2 No. 14
