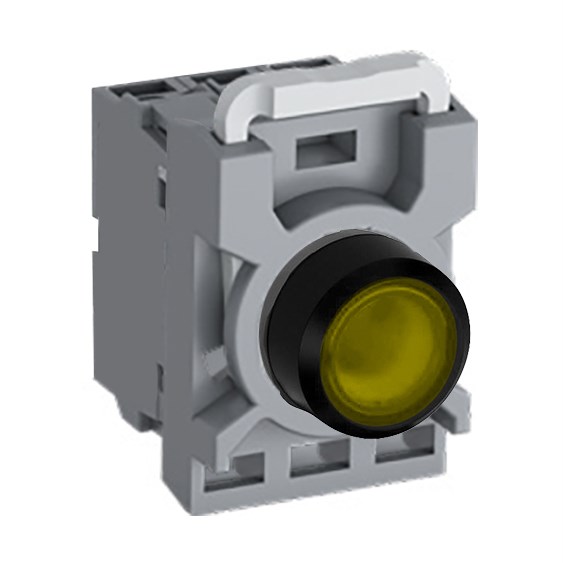

ABB MPPIFYO202 Illuminated Pushbutton Kit 22mm Flush Momentary Yellow 110-130VAC/DC 2NC

Product Code: MPPIFYO202

  • Operates on 110-130 VAC/DC with LED illumination
  • IP66 front protection, suitable for harsh environments
  • Flush actuator design with a 22 mm diameter
  • Features yellow LED lamp for clear visibility
  • Includes operator, contact block & LED block
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Contacts 2NC
LED Block Rated Voltage 110-130 VAC
Bezel Material Plastic
Product Type Pushbutton Kit
Brand ABB
Actuator Type Flush
Ambient Temperature -25 to 70 deg C
Bezel Material Plastic
Colour Yellow
Contact Configuration 2NC
Cutout Size 22 mm
Degree of Protection IP66 Front, IP20 Terminal
Diameter 22 mm
Function Momentary
Illumination Illuminated
Includes Operator, Contact Block, Contact Block Holder and LED Block
Lamp Colour Yellow
Lamp Type LED
Rated Impulse Withstand Voltage 6 kV
Rated Insulation Voltage 690 V
Rated Thermal Current 10 A
Rated Voltage 110-130 VAC/DC
Standards and Approvals EN IEC 60947-1, EN IEC 60947-5-1, EN IEC 60947-5-5, EN IEC 60073, EN IEC 60529, EN 50013, DIN 40050-9, UL 508, CSA C22.2 No. 14

Documents

  • IPD Product Catalogue

    IPD Product Catalogue V17
