When selecting components for industrial and commercial applications, reliability and adherence to standards are paramount. This illuminated pushbutton switch is engineered to meet these needs with precision. Operating at a rated voltage of 12 VAC/DC, this device is well-suited for diverse environments, offering both versatility and efficiency.
The robust construction of the switch is evident in its degree of protection. With an IP66 rating at the front, it provides excellent resistance against dust ingress and powerful water jets, making it suitable for harsh industrial settings. The IP20 rating at the terminal ensures basic protection against finger contact with live parts.
In terms of compliance, this product aligns with several rigorous international standards including EN IEC 60947-1, EN IEC 60947-5-1, EN IEC 60947-5-5, EN IEC 60073, EN IEC 60529 as well as UL 508 and CSA C22.2 No. 14 certifications. These approvals affirm its safety and performance credentials in both European and North American markets.
Designed to operate efficiently within a wide ambient temperature range from -25°C to +70°C, this switch can withstand challenging thermal conditions without compromising functionality. It features a rated insulation voltage of up to 690 V which enhances its durability under high-voltage scenarios.
The contact configuration includes one normally open (NO) and one normally closed (NC) contact providing flexibility in circuit design by allowing simultaneous control over two separate circuits or functions. Additionally, it boasts a rated impulse withstand voltage of up to 6 kV which safeguards against transient overvoltages typically encountered in electrical installations.

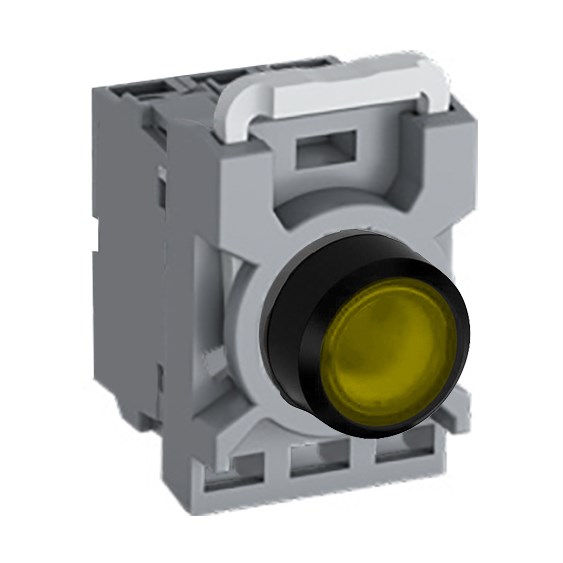

A flush actuator type with a diameter of 22 mm ensures ease of use while maintaining a sleek profile on control panels or operator interfaces. The yellow LED lamp not only enhances visibility but also contributes to energy efficiency compared to traditional incandescent lamps.
Functionality is further enhanced by its momentary operation mode—ideal for applications requiring instant activation without latching mechanisms such as emergency stops or machine start buttons where immediate response is critical.
Withstanding currents up to a rated thermal current of 10 A ensures that this component can handle demanding loads without overheating risks while maintaining operational integrity over time.
Constructed with durable plastic bezel material guarantees longevity even under frequent usage scenarios common in industrial environments ensuring minimal maintenance requirements over extended periods reducing downtime costs substantially
Installation is streamlined thanks to the standardized cutout size matching industry norms facilitating seamless integration into existing setups minimizing disruption during upgrades or replacements
Each unit includes essential components like an operator contact block holder along with an LED block ensuring all necessary elements are provided simplifying procurement processes significantly
