When selecting components for industrial and commercial applications, technical specifications are paramount. This illuminated pushbutton is a robust choice for demanding environments such as mining, construction, and heavy industry. Its design ensures reliability and durability under challenging conditions.
Operating at a rated voltage of 230 VAC/DC, this device offers flexibility in both alternating current (AC) and direct current (DC) systems. It features an IP66 degree of protection, safeguarding against dust ingress and powerful water jets—ideal for harsh settings where moisture or contaminants are present.
The product complies with multiple standards including EN IEC 60947-5-1, EN IEC 60947-5-5, EN IEC 60073, EN IEC 60529 as well as UL 508 and CSA C22.2 No. 14 certifications. These approvals affirm its safety and performance across various international markets.
Designed to operate within ambient temperatures ranging from -30 to 70 degrees Celsius, it maintains functionality in both extreme cold and heat. The faston connection type simplifies installation while ensuring secure electrical connections.
A rated insulation voltage of 690 V enhances safety by preventing unintended electrical discharge through the device's insulation materials. Additionally, the rated impulse withstand voltage of 4 kV provides resilience against transient overvoltages—a critical feature in environments prone to electrical surges.
This pushbutton’s contact configuration is a single normally closed (1NC) circuit which opens when the actuator is pressed—a momentary function suitable for operations requiring temporary activation signals.
The flush actuator type with a diameter of 22 mm fits seamlessly into standard panel cutouts without protruding excessively—minimizing accidental operation risks while maintaining accessibility.

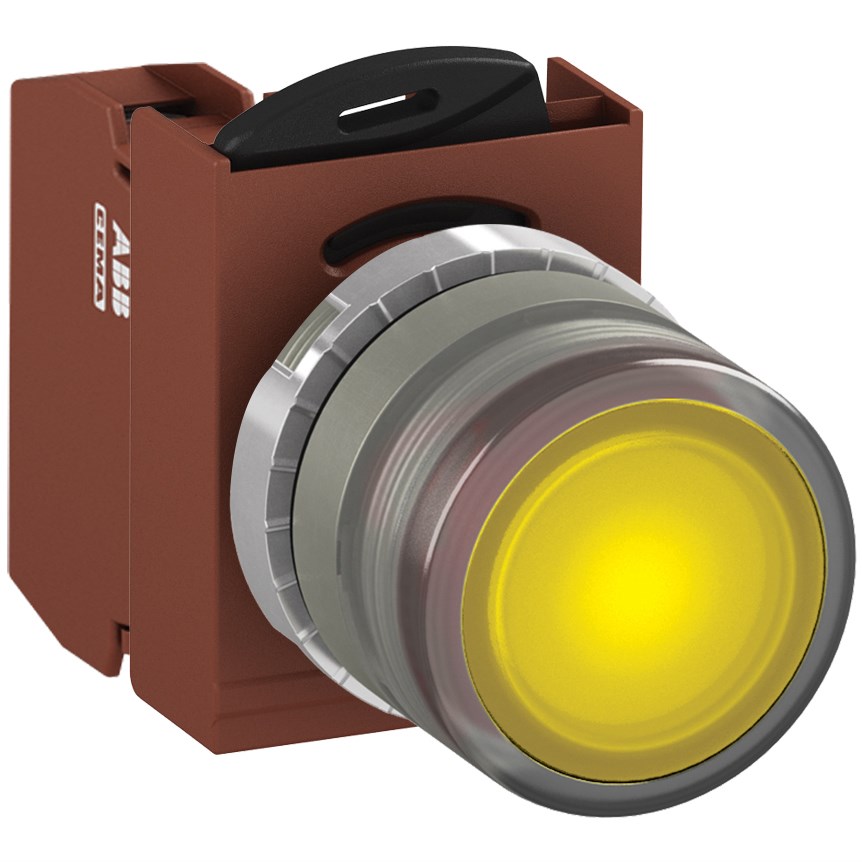

Illumination is provided via a yellow BA9S lamp housed within a metal bezel that not only adds to the aesthetic appeal but also contributes to its ruggedness. The power supply light block ensures consistent lighting performance essential for visibility even in poorly lit areas or during low-light conditions.
Included with this unit are an operator module, contact block, maintained accessories along with the power supply lamp block and lamp itself—offering comprehensive solutions ready for integration into existing systems without needing additional components.
Overall, this illuminated pushbutton stands out as an efficient solution tailored specifically for intensive industrial applications where reliability cannot be compromised.
