When selecting a pushbutton for industrial or commercial applications, it's essential to consider a product that combines durability with functionality. This pushbutton offers just that, designed to meet rigorous standards while providing reliable performance in demanding environments.

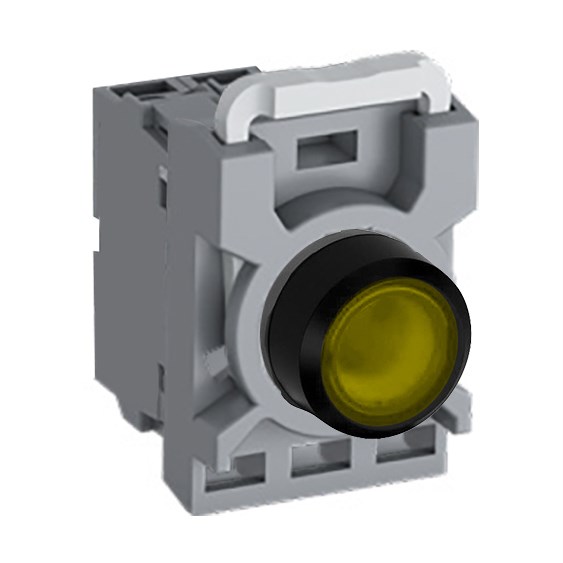

This illuminated pushbutton operates at a rated voltage of 24 VAC/DC and features a flush actuator type. Its design prioritizes both safety and efficiency, evident from its IP66 rating on the front—ensuring protection against dust and powerful water jets—and an IP20 rating at the terminal level. This makes it suitable for various applications where exposure to harsh conditions is common.
The device adheres to several international standards such as EN IEC 60947-1, EN IEC 60947-5-1, EN IEC 60947-5-5, and more. These approvals affirm its compliance with industry norms for control circuit devices and switching elements. Additionally, it meets UL 508 and CSA C22.2 No. 14 standards, ensuring compatibility within North American markets.
Operating efficiently across a broad ambient temperature range from -25°C to 70°C, this pushbutton is built for resilience in diverse climates. The rated insulation voltage stands at an impressive 690 V with a rated impulse withstand voltage of 6 kV—capabilities that ensure robust electrical insulation under high-stress conditions.
Designed with practicality in mind, the contact configuration is set at normally open (1NO), allowing current flow only when the button is pressed—a crucial feature for momentary operations. It supports a rated thermal current of up to 10 A, making it suitable for controlling various electrical loads.
The aesthetic aspect isn't overlooked either; the LED lamp emits a distinct yellow light through its plastic bezel material which enhances visibility while maintaining energy efficiency—a hallmark of modern industrial design.
With dimensions tailored for standard installations—a cutout size matching its diameter of 22 mm—it integrates seamlessly into existing panels or new setups without hassle. The inclusion of an operator, contact block, contact block holder, and LED block ensures you have everything needed for straightforward assembly.
In summary, this pushbutton stands out as a reliable choice due to its comprehensive protective features and adherence to global standards coupled with user-friendly installation options—all encapsulated in one robust unit ready to meet your operational needs effectively.
