When selecting components for your industrial or commercial projects, understanding the technical specifications and reliability of each product is crucial. Here, we delve into the specifics of a robust and well-engineered illuminated pushbutton switch that could be integral to your control panel design.
This device operates at a rated voltage of 24 VAC/DC, making it versatile for various applications requiring low voltage operations. The illumination feature enhances visibility in dimly lit environments, which can be particularly beneficial in industrial settings where clear indication is necessary.
A key aspect of this pushbutton switch is its impressive degree of protection: IP66 at the front and IP20 at the terminal. This means it's highly resistant to dust ingress and powerful water jets from any direction on its front side, while offering basic protection against touch at the terminals—ideal for environments where exposure to challenging conditions is a concern.
The product conforms to several international standards and approvals including EN IEC 60947-1, EN IEC 60947-5-1, EN IEC 60947-5-5, EN IEC 60073, EN IEC 60529, EN 50013, DIN 40050-9 as well as UL 508 and CSA C22.2 No.14 certifications. These endorsements ensure compliance with electrical safety regulations across multiple regions.
Designed to function efficiently within an ambient temperature range of -25°C to +70°C, this switch can withstand both cold storage facilities and high-temperature manufacturing processes without compromising performance.
With a rated insulation voltage of up to 690 V and a rated impulse withstand voltage of 6 kV, it offers excellent electrical endurance against transient voltages—essential for safeguarding equipment in electrically noisy environments.
The contact configuration features two normally closed (2NC) contacts allowing for reliable interruption in control circuits when activated. Additionally, it has a rated thermal current capacity of up to 10 A which supports substantial load handling capabilities.

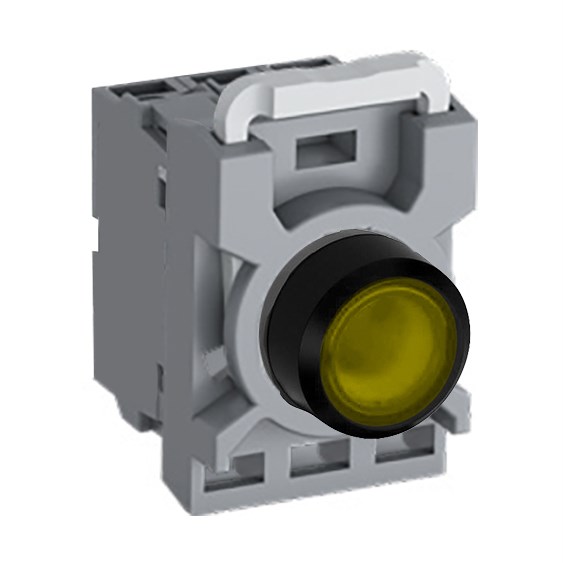

The actuator type is flush with a diameter cutout size of 22 mm which aligns with standard industry dimensions facilitating seamless integration into existing systems. The lamp emits yellow light via LED technology ensuring long-lasting illumination with minimal energy consumption—a practical choice for sustainability-conscious operations.
Constructed with durability in mind, the bezel material is plastic providing adequate resistance against wear while maintaining cost-effectiveness. Included components such as an operator unit along with contact block holder and LED block ensure comprehensive installation without needing additional parts procurement.
This momentary function switch provides tactile feedback essential for precise control tasks commonly found in automation panels or machinery interfaces making it an ideal choice when dependability cannot be compromised.
