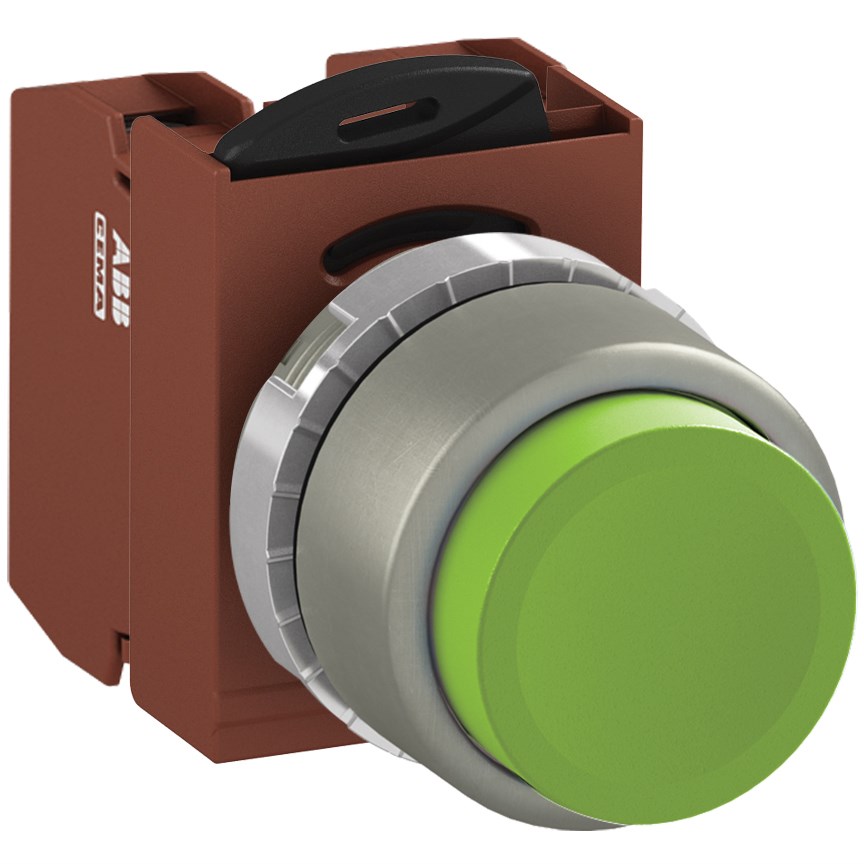

This robust and reliable industrial control device is designed to meet the demanding needs of mining, construction, and heavy industry applications. With a focus on durability and performance, this non-illuminated pushbutton switch offers a high degree of protection with its IP66 rating, ensuring it withstands harsh environmental conditions such as dust and water ingress.
The device adheres to stringent standards including EN IEC 60947-5-1, EN IEC 60947-5-5, EN IEC 60073, EN IEC 60529 as well as UL 508 and CSA C22.2 No. 14 certifications. This compliance assures users of its safety and reliability in various industrial settings.
Designed for versatility in extreme environments, it operates efficiently within an ambient temperature range of -30 to 70 degrees Celsius. The screw connection type provides secure wiring connections essential for stable operation across different installations.
With an extended actuator type that is easy to engage, this pushbutton features a maintained function which means it remains in its last position until manually reset—ideal for processes requiring consistent control without constant user intervention.
The button's green color is universally recognized for signaling start or go commands in industrial applications. Its diameter measures at a comfortable 22 mm which aligns with standard cutout sizes ensuring compatibility with existing panels or new configurations.
On the electrical side, the product boasts a rated insulation voltage of up to 690 V and can handle a rated impulse withstand voltage of up to 4 kV providing robust protection against transient overvoltages typical in industrial environments. The contact configuration includes one normally open (NO) and one normally closed (NC) contact allowing flexible integration into various circuit designs.
Built with durability in mind, the metal bezel material enhances its resilience against mechanical impacts while maintaining aesthetic integrity over time. Additionally, the device supports a rated thermal current of up to 10 A making it suitable for controlling moderate power loads common in heavy-duty applications.
Overall, this pushbutton switch delivers dependable performance tailored specifically for challenging industrial operations where reliability cannot be compromised.
