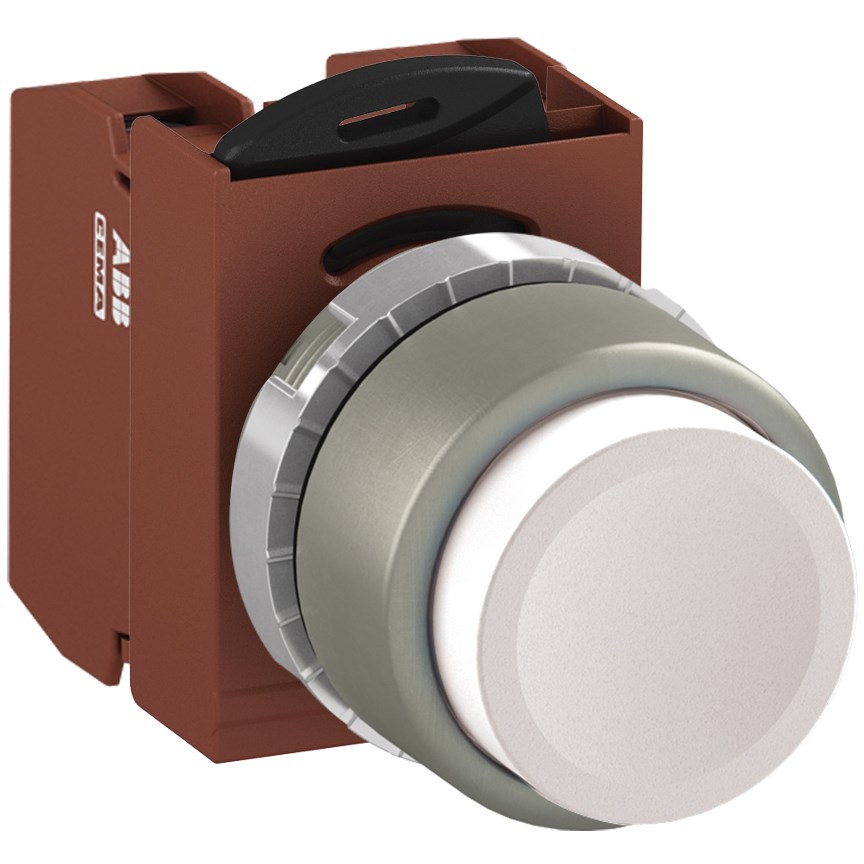

When selecting a component for demanding environments, robustness and reliability are paramount. This non-illuminated push button is designed with those principles in mind, making it an ideal choice for mining, construction, and heavy industry applications.
The device features an extended actuator type which ensures ease of operation even in challenging conditions. Its 22 mm diameter fits standard cutouts while maintaining a compact profile that integrates seamlessly into control panels. The maintained function of the button means it stays in its last position until manually changed, providing consistent performance without unintended resets.
Engineered to withstand harsh conditions, this push button has an impressive degree of protection rated at IP66. It offers excellent resistance against dust ingress and powerful water jets from any direction, ensuring longevity and reliability in tough settings.
The push button complies with several international standards including EN IEC 60947-5-1 and UL 508 among others. These certifications underline its quality and suitability for industrial use by meeting stringent safety and performance benchmarks.
With a wide ambient temperature range from -30 to 70 degrees Celsius, this device can perform reliably across extreme temperatures often encountered in outdoor or unregulated indoor environments. The rated insulation voltage stands at 690 V while the rated impulse withstand voltage is 4 kV – both figures reflecting its capacity to handle substantial electrical loads safely.
Equipped with a screw connection type, installation is straightforward and secure. The contact configuration of 2NO (two normally open) enables versatile circuit integration options suitable for various operational needs within industrial systems.
Constructed with metal bezel material, the push button not only provides durability but also adds an extra layer of protection against mechanical impacts or wear over time. Its white color enhances visibility on control panels while maintaining a professional appearance that aligns well with industrial aesthetics.
Rated for a thermal current of up to 10 A, it supports high-power operations typical in energy-intensive sectors such as mining or construction without compromising on efficiency or safety standards.
Overall, this robustly built non-illuminated push button combines practical design features with high-performance specifications tailored specifically for heavy-duty applications where resilience is key.
