Product Code: MPPNEYA10

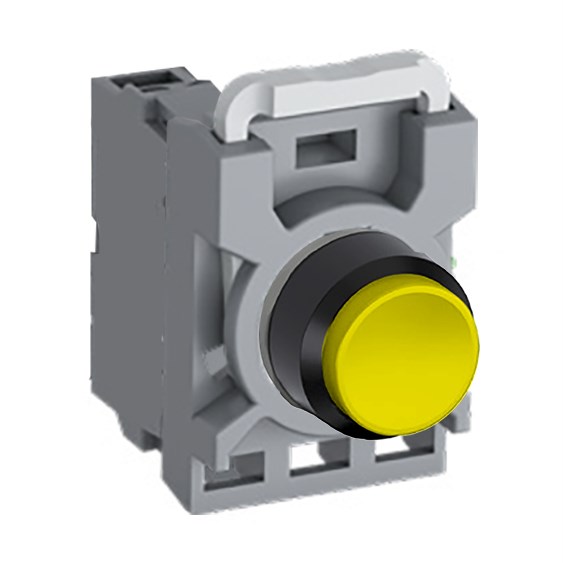

Non-illuminated pushbutton with extended actuator
IP66 front protection for harsh environments
Operates in temperatures from -25 to 70°C
Rated insulation voltage of 690V, impulse withstand 6kV
Includes operator, contact block, and holder

Specifications

Contacts	1NO
Rated Frequency (Hz)	50/60
LED Block Rated Voltage	Not Applicable
Bezel Material	Plastic
Product Type	Pushbutton Kit
Brand	ABB
Actuator Type	Extended
Ambient Temperature	-25 to 70 deg C
Bezel Material	Plastic
Button Colour	Yellow
Colour	Yellow
Contact Configuration	1NO
Cutout Size	22 mm
Degree of Protection	IP66 Front, IP20 Terminal
Diameter	22 mm
Function	Maintained
Illumination	Non-Illuminated
Includes	Operator, Contact Block and Contact Block Holder
Mode of Operation	Maintained
Rated Impulse Withstand Voltage	6 kV
Rated Insulation Voltage	690 V
Rated Thermal Current	10 A
Standards and Approvals	EN IEC 60947-1, EN IEC 60947-5-1, EN IEC 60947-5-5, EN IEC 60073, EN IEC 60529, EN 50013, DIN 40050-9, UL 508, CSA C22.2 No. 14

Description

This is a Non-Illuminated Pushbutton in Yellow colour. It is a Maintained type with Extended functionality and has 1 Normally Open (NO) contact. This pushbutton is part of a Modular Plastic Range kit and includes an operator, contact blocks, and a contact block holder.

Documents

IPD Product Catalogue

IPD Product Catalogue V17

ABB MPPNEYA10 Non-Illuminated Pushbutton Kit 22mm Extended Maintained Yellow 1NO
