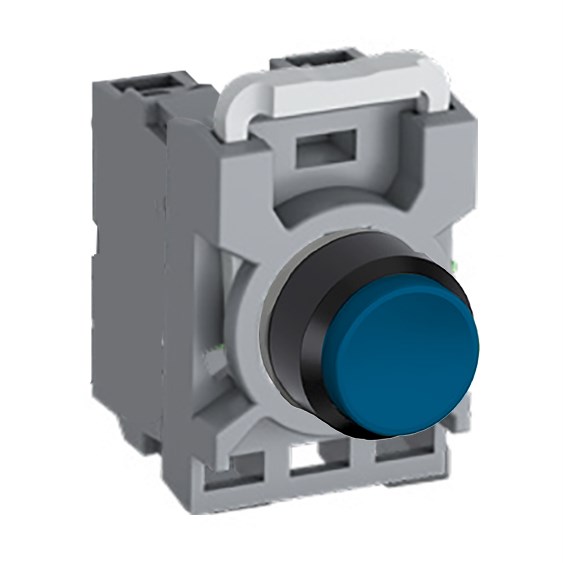

When evaluating industrial components for your next project, the non-illuminated pushbutton switch detailed here offers a robust solution that meets rigorous standards. Designed with an extended actuator type and a momentary function, this device is well-suited to applications requiring temporary engagement.
The unit's front boasts an IP66 degree of protection, ensuring resistance against dust and powerful water jets, making it ideal for harsh environments. Its terminals are rated at IP20, providing adequate protection against accidental contact. This balance of durability and safety makes it a reliable choice in diverse operational settings.
Conforming to multiple standards such as EN IEC 60947-1, EN IEC 60947-5-1, EN IEC 60947-5-5, among others like UL 508 and CSA C22.2 No. 14, the switch ensures compliance with international benchmarks for electrical equipment safety and performance.
Temperature resilience is another highlight; it operates efficiently in ambient temperatures ranging from -25 to 70 degrees Celsius. This adaptability allows it to perform reliably across various climates without compromising functionality.
With a rated insulation voltage of 690 V and an impulse withstand voltage of up to 6 kV, this component handles significant electrical demands safely. The contact configuration is set as 1NO+1NC (one normally open and one normally closed), offering flexibility in circuit design by allowing dual control options within a single device.
The switch features a diameter of 22 mm which aligns with standard panel cutouts for easy integration into existing systems or new installations. The plastic bezel material provides durability while maintaining cost-effectiveness without sacrificing quality or appearance.
Rated thermal current stands at 10 A which supports substantial electrical loads typical in industrial settings. The blue button color not only enhances visibility but also facilitates quick identification during operation—a crucial factor during high-pressure situations where swift action might be necessary.
Incorporated within the package are essential components: the operator itself along with a contact block and holder ensuring you have everything needed for straightforward installation right out of the box—streamlining setup processes significantly.
This product exemplifies reliability through its thoughtful engineering tailored towards demanding environments where precision and endurance are paramount requisites—an excellent addition to any professional toolkit seeking dependable performance day after day.
