For professionals in the electrical engineering and automation sectors, selecting the right pushbutton is crucial for ensuring reliable operation in industrial and commercial applications. This particular pushbutton offers a blend of durability and functionality that meets rigorous standards.

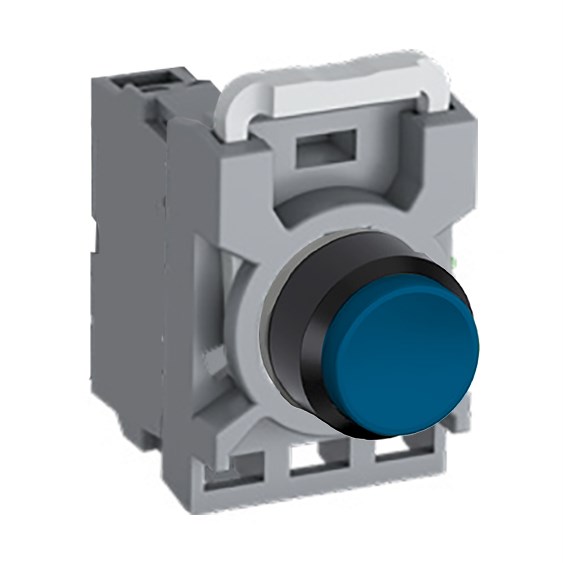

Designed as a non-illuminated pushbutton, it features an extended actuator type with a 22 mm diameter, making it suitable for various control panel designs. Its momentary function ensures immediate response upon activation, which is essential for operations requiring quick and precise control.
The product's robustness is highlighted by its degree of protection: IP66 at the front and IP20 at the terminal. This level of protection signifies resistance against dust ingress and powerful water jets from any direction at the front, while offering basic protection at the terminals. Such attributes make it ideal for challenging environments where exposure to moisture or dust might be a concern.
In terms of compliance, this pushbutton adheres to several international standards including EN IEC 60947-1, EN IEC 60947-5-1, EN IEC 60947-5-5, EN IEC 60073, EN IEC 60529, along with UL 508 and CSA C22.2 No.14 certifications. These approvals ensure that the product meets high safety and performance benchmarks suitable for global markets.
Operating efficiently across a wide ambient temperature range from -25 to 70 degrees Celsius makes this pushbutton versatile enough for both cold storage facilities and warmer industrial settings. The rated insulation voltage stands at an impressive 690 V with a rated impulse withstand voltage of up to 6 kV—indicative of its capability to handle sudden voltage spikes without compromising performance.
The contact configuration includes one normally open (1NO) contact block capable of handling a rated thermal current up to 10 A—a testament to its reliability under load conditions typical in industrial use cases.
Constructed with plastic bezel material ensures lightweight characteristics while maintaining structural integrity during operation. The cutout size matches industry norms at 22 mm facilitating easy integration into existing systems without necessitating additional modifications.
Available in blue button color enhances visibility on panels where color coding might be employed as part of operational protocols or safety measures.
Each unit comes complete with an operator component alongside both contact block and holder—providing all necessary components required for straightforward installation thereby reducing setup time significantly on site deployment projects.
