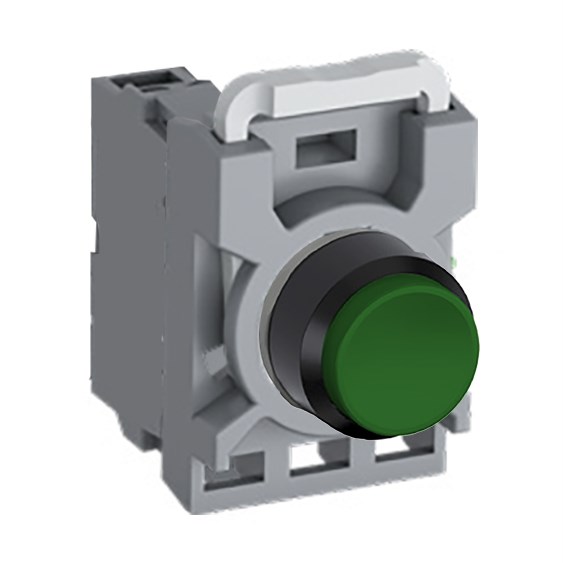

When selecting a pushbutton for industrial or commercial applications, it's crucial to consider the technical specifications and compliance standards that align with your operational needs. This non-illuminated pushbutton offers a robust solution for various environments, boasting an impressive degree of protection with IP66 at the front and IP20 at the terminal. This ensures resilience against dust and powerful water jets, making it suitable for harsh conditions.
The pushbutton meets multiple international standards and approvals such as EN IEC 60947-1, EN IEC 60947-5-1, EN IEC 60947-5-5, EN IEC 60073, EN IEC 60529, as well as UL 508 and CSA C22.2 No. 14 certifications. These endorsements guarantee adherence to rigorous safety and performance benchmarks.
Designed to function optimally within an ambient temperature range from -25°C to 70°C, this device is adaptable across diverse climatic conditions. It features a rated insulation voltage of up to 690 V and a rated impulse withstand voltage of 6 kV which underscores its capability in high-voltage scenarios.
The pushbutton's extended actuator type provides ease of use while its momentary function is ideal for applications requiring temporary engagement. The contact configuration includes a single normally open (1NO) contact setup which suits circuits where closing the circuit is necessary only when pressed.
With a diameter of 22 mm matching the cutout size requirement, installation is straightforward without necessitating complex adjustments. The green button color not only enhances visibility but also aligns with industry norms where green indicates start or go functions.
Rated for a thermal current of up to 10 A, this pushbutton can handle substantial electrical loads reliably. Constructed with durable plastic bezel material, it combines longevity with cost-effectiveness.
Each unit comes complete with an operator, contact block, and contact block holder ensuring you have all components needed for immediate deployment upon receipt.
In summary, this pushbutton balances functionality with compliance while offering reliable performance in demanding settings—an excellent choice for professionals seeking dependable control solutions in their systems.
