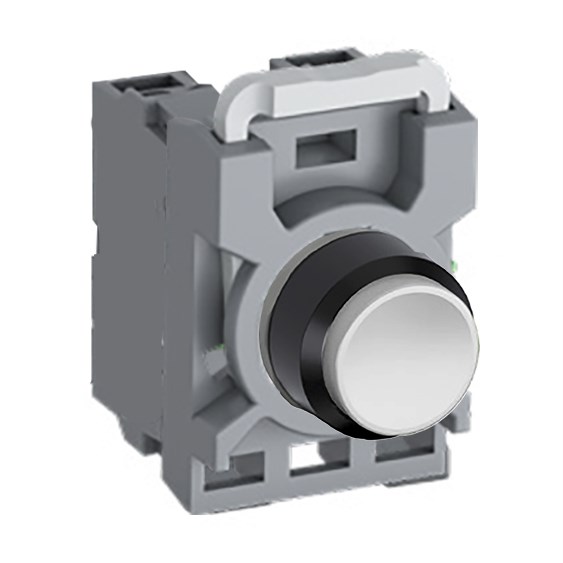

When selecting a control device for your industrial or commercial project, it's essential to rely on factual specifications that meet rigorous standards. This non-illuminated pushbutton offers robust features and approvals that make it a reliable choice for various applications.
Designed with an extended actuator type, this momentary function button provides ease of use while ensuring precise operation. The white button color is both functional and aesthetically neutral, allowing it to integrate seamlessly into different panel designs.
The device's degree of protection is noteworthy; with an IP66 rating at the front, it guarantees excellent resistance against dust ingress and powerful water jets. The terminal side has an IP20 rating, suitable for environments where finger-safe terminals are required. These ratings ensure the product withstands challenging conditions without compromising performance.
Meeting multiple international standards such as EN IEC 60947-1, EN IEC 60947-5-1, EN IEC 60947-5-5, EN IEC 60073, EN IEC 60529, EN 50013, DIN 40050-9 as well as UL 508 and CSA C22.2 No.14 certifications further attests to its reliability and safety in diverse settings.
The pushbutton operates efficiently within a broad ambient temperature range from -25 to 70 degrees Celsius. This adaptability makes it suitable for varied climatic conditions found across Australia.
With a rated insulation voltage of up to 690 V and a rated impulse withstand voltage of 6 kV, this switch can handle significant electrical loads safely. Its contact configuration includes one normally open (NO) and one normally closed (NC) contact, offering flexibility in circuit design.
Additionally, the rated thermal current stands at an impressive 10 A—making it capable of handling substantial current loads typical in industrial applications.
Constructed with a durable plastic bezel material and designed for easy installation into standard cutout sizes of 22 mm diameter panels ensures compatibility with existing setups without needing extensive modifications.
Included with the product are the operator itself along with a contact block and contact block holder—providing everything needed for straightforward integration into your system setup.
