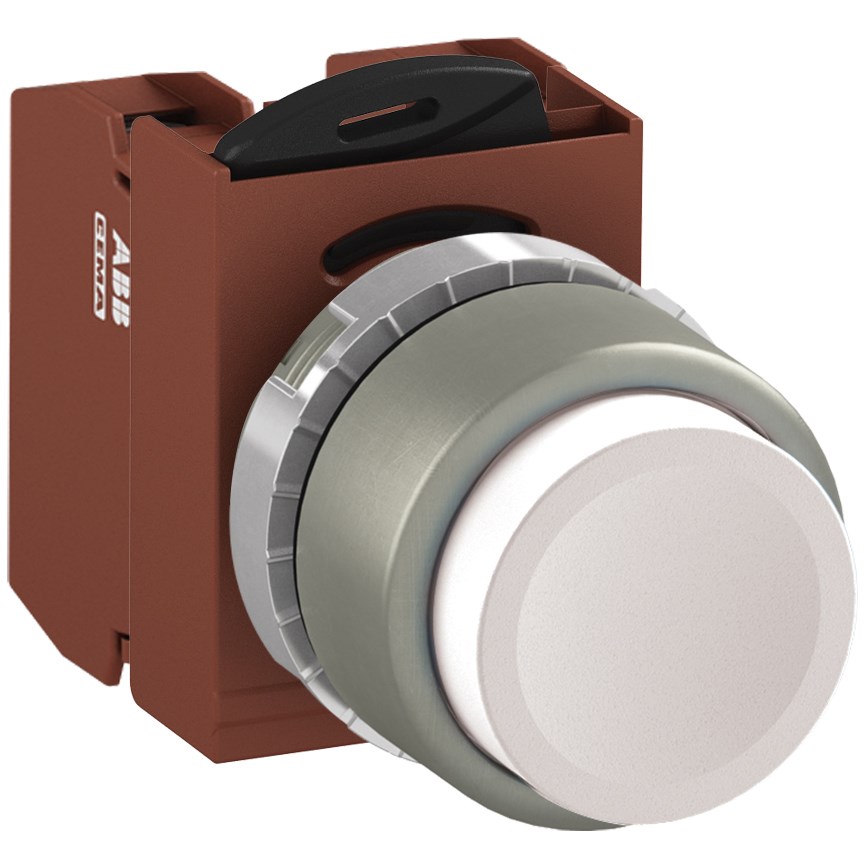

ABB MMPNEWOS20 Non-Illuminated Pushbutton Kit 22mm Extended Momentary White 2NO Screw

Product Code: MMPNEWOS20

  • IP66 for robust protection in harsh environments
  • Operates in temps from -30 to 70°C
  • Screw connection ensures secure installation
  • 2NO contact config with 10A thermal current rating
  • Suitable for mining, construction, heavy industry
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Contacts 2NO
LED Block Rated Voltage Not Applicable
Bezel Material Metal
Product Type Pushbutton Kit
Brand ABB
Actuator Type Extended
Ambient Temperature -30 to 70 deg C
Application For mining, construction and heavy industry applications
Bezel Material Metal
Button Colour White
Colour White
Connection Type Screw
Contact Configuration 2NO
Cutout Size 22 mm
Degree of Protection IP66
Diameter 22 mm
Function Momentary
Illumination Non-Illuminated
Light Blocks Type Not Applicable
Rated Impulse Withstand Voltage 4 kV
Rated Insulation Voltage 690 V
Rated Thermal Current 10 A
Standards and Approvals EN IEC 60947-5-1, EN IEC 60947-5-5, EN IEC 60073, EN IEC 60529, UL 508, CSA C22.2 No. 14
