When selecting the right pushbutton for your industrial or commercial application, understanding the technical specifics is crucial. This non-illuminated pushbutton offers a blend of reliability and compliance with international standards, making it suitable for various environments.
The pushbutton boasts a robust degree of protection with an IP66 rating at the front and IP20 at the terminal, ensuring resilience against dust and water ingress in harsh conditions. It adheres to multiple standards including EN IEC 60947-1, EN IEC 60947-5-1, EN IEC 60947-5-5, as well as UL 508 and CSA C22.2 No. 14 certifications, assuring you of its quality and safety across different regions.
Designed to operate efficiently within ambient temperatures ranging from -25 to 70 degrees Celsius, this button is versatile enough for both indoor and outdoor applications in varying climates. Its rated insulation voltage stands at an impressive 690 V while offering a rated impulse withstand voltage of up to 6 kV—features that enhance its durability under electrical stress.
The contact configuration is set as normally open (1NO), which means it will complete the circuit only when pressed—ideal for momentary operations where temporary activation is required. With a rated thermal current of 10 A, it can handle moderate power loads commonly encountered in industrial settings.

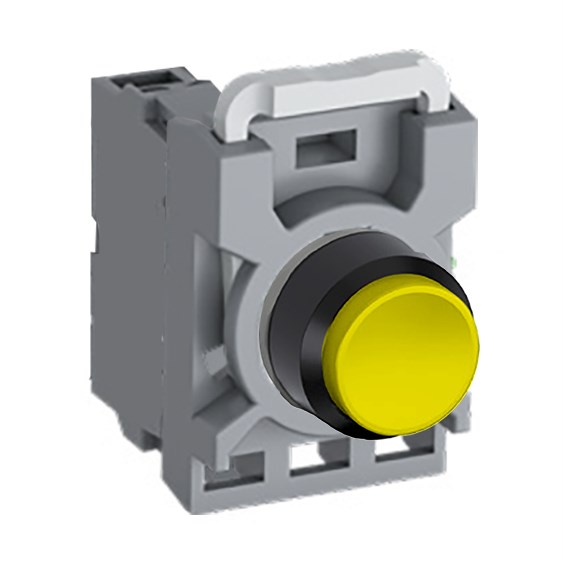

A standout feature is its extended actuator type paired with a yellow button color—this design choice not only makes it easy to spot but also facilitates quick access during operation. The bezel material crafted from plastic ensures both lightweight handling and cost-effectiveness without compromising on strength or longevity.
For installation convenience, this pushbutton fits into standard cutout sizes with a diameter of 22 mm—a common size that simplifies integration into existing panels or systems. The package includes an operator along with a contact block and holder, providing all necessary components for straightforward assembly.
In summary, this pushbutton combines essential features tailored for demanding environments while maintaining ease-of-use through thoughtful design elements like its extended actuator and bright yellow color. Whether you’re upgrading existing equipment or specifying components for new installations, this product delivers reliable performance aligned with stringent industry standards—all packaged in one user-friendly unit.
