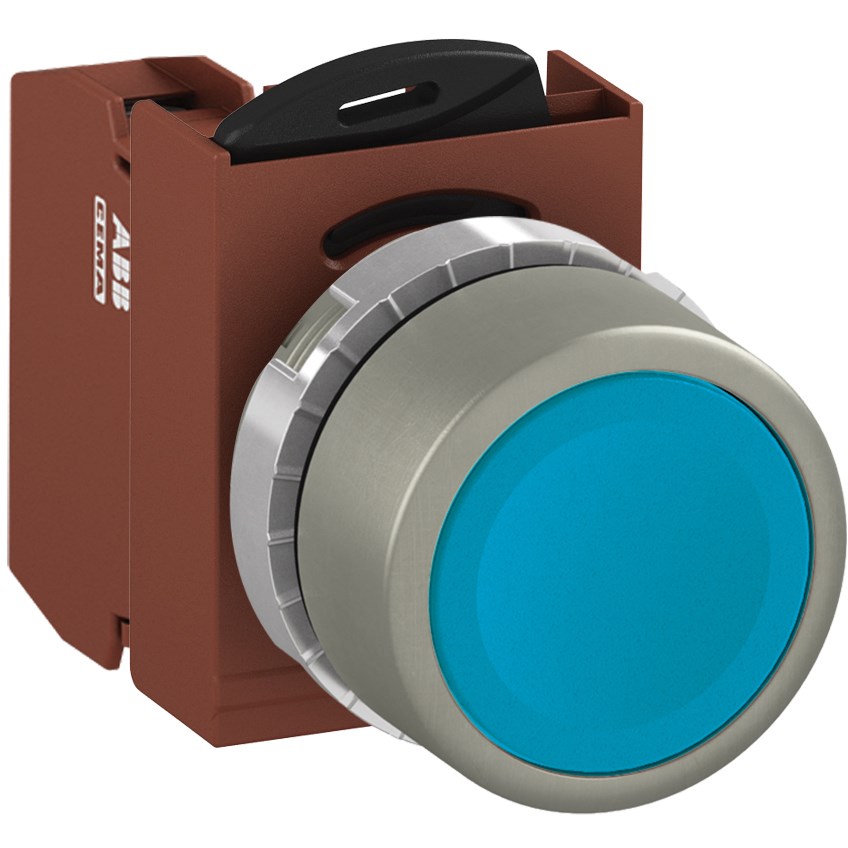

This robust and reliable industrial pushbutton is specifically designed for demanding environments, making it an ideal choice for professionals in mining, construction, and heavy industry sectors. With a focus on durability and performance, this non-illuminated pushbutton meets the stringent requirements of EN IEC 60947-5-1, EN IEC 60947-5-5, EN IEC 60073, EN IEC 60529 standards as well as UL 508 and CSA C22.2 No. 14 approvals.
One of its standout features is the IP66 degree of protection which ensures complete defense against dust ingress and powerful water jets from any direction—critical traits for equipment operating in rugged outdoor conditions or high-moisture environments.
Designed to operate efficiently within a wide ambient temperature range from -30 to 70 degrees Celsius, this pushbutton maintains reliability under extreme weather conditions. The screw connection type offers a secure electrical connection that is both easy to install and maintain.
The device boasts a rated insulation voltage of up to 690 V with a rated impulse withstand voltage of 4 kV—attributes essential for handling high-voltage applications safely. Its contact configuration includes one normally open (1NO) contact ensuring straightforward integration into existing systems without complex rewiring.
With an actuator type that is flush-mounted and a diameter of 22 mm matching the cutout size exactly, installation becomes seamless while maintaining structural integrity. The maintained function allows operators to engage the button until manually reset—a feature useful in processes requiring sustained activation.
Constructed with metal bezel material, this pushbutton not only provides superior strength but also adds an element of sophistication with its blue button color—aesthetic considerations often appreciated in control panel design.
Rated at a thermal current capacity of up to 10 A, it supports substantial loads typical in industrial settings without compromising safety or performance.
Overall, this pushbutton combines technical excellence with practical usability tailored for challenging operational landscapes.
