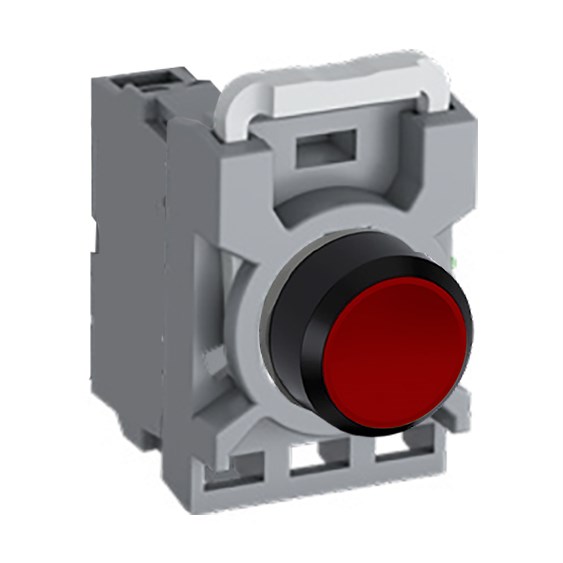

ABB MPPNFRA01 Non-Illuminated Pushbutton Kit 22mm Flush Maintained Red 1NC

Product Code: MPPNFRA01

  • Non-illuminated, flush red button
  • IP66 front protection, durable design
  • Operates in -25 to 70°C environments
  • 22 mm diameter with maintained function
  • Includes operator and contact block
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Contacts 1NC
Rated Frequency (Hz) 50/60
LED Block Rated Voltage Not Applicable
Bezel Material Plastic
Product Type Pushbutton Kit
Brand ABB
Actuator Type Flush
Ambient Temperature -25 to 70 deg C
Bezel Material Plastic
Button Colour Red
Colour Red
Contact Configuration 1NC
Cutout Size 22 mm
Degree of Protection IP66 Front, IP20 Terminal
Diameter 22 mm
Function Maintained
Illumination Non-Illuminated
Includes Operator, Contact Block and Contact Block Holder
Mode of Operation Maintained
Rated Impulse Withstand Voltage 6 kV
Rated Insulation Voltage 690 V
Rated Thermal Current 10 A
Standards and Approvals EN IEC 60947-1, EN IEC 60947-5-1, EN IEC 60947-5-5, EN IEC 60073, EN IEC 60529, EN 50013, DIN 40050-9, UL 508, CSA C22.2 No. 14

Description

This Non-Illuminated Pushbutton Red Maintained Flush kit is part of a Modular Plastic Range. It includes an operator, contact blocks, and a contact block holder. The pushbutton has 1NC (Normally Closed) contacts.
